Methodology
Four Canadian flax cultivars were selected for this study: ‘CDC Bethune’ [14], ‘AC Emerson’ [15], ‘Flanders’ [16], and ‘AC McDuff’ [17]. Seed was from the Crop Development Centre’s flax breeding program, where they are used as controls. The materials and corresponding voucher specimens are available at Plant Gene Resources of Canada (Saskatoon, SK, Canada), under the conditions of the Multilateral System for Access and Benefit-sharing of the International Treaty on Plant Genetic Resources for Food and Agriculture. Plants were seeded into 4 L pots and grown in a controlled environment growth chamber (see Additional file 1 for details on soil, watering, fertilizing, and pest control).
Four developmental stages were selected for tissue collection based on morphological markers (first bud stage, first flower stage, full flowering stage and maturity) (Additional file 1). Tissues were collected (roots, stems, leaves, shoot tips, flowers, immature bolls, and seeds) at all appropriate stages, and were stored at -80 °C. Tissues were freeze-dried and ground into a powder using a 2010 Geno/grinder (SPEX CertiPrep, Inc., Methucen, NJ). Ground, freeze-dried tissue samples were processed at the Toxicology Centre, University of Saskatchewan, before Cd quantification using inductively coupled plasma-mass spectrometry (ICP-MS).
All statistical analyses were performed in RStudio, version 3.6.3 [18]. Prior to performing analyses of variance (ANOVA), we confirmed the data had equal variance and was normally distributed. Two-way ANOVA was used to test the effects of genotype and tissue on Cd accumulation in reproductive structures using the core R stats package function, aov() [18]. A three-way mixed ANOVA was performed using the rstatix package [19] function, anova_test(), to test the effects of genotype, age, tissue on Cd accumulation in vegetative tissues, followed by simple two-way ANOVA when appropriate. Tukey’s HSD was used to make pairwise comparisons and the level of significance accepted for all tests was p < 0.05.
Additional details on the materials and methods used are in Additional file 1.
Results
Accumulation of Cd in flowers, immature bolls and seeds
Using a two-way ANOVA we determined that genotype and tissue stably affect Cd concentration within reproductive structures (Additional file 2: Table S1). Specifically, seeds had a higher concentration of Cd than flowers and immature bolls, and there was no difference between flowers and bolls (Fig. 1). The differences in Cd concentration between seeds and flowers, and seeds and bolls, were stable, with the concentration in ‘AC McDuff’ lower than that in ‘AC Emerson’ and ‘Flanders’, but the same as that in ‘CDC Bethune’ (Fig. 1).
Genotype, tissue and
developmental
stage interact to determine Cd concentration in flax

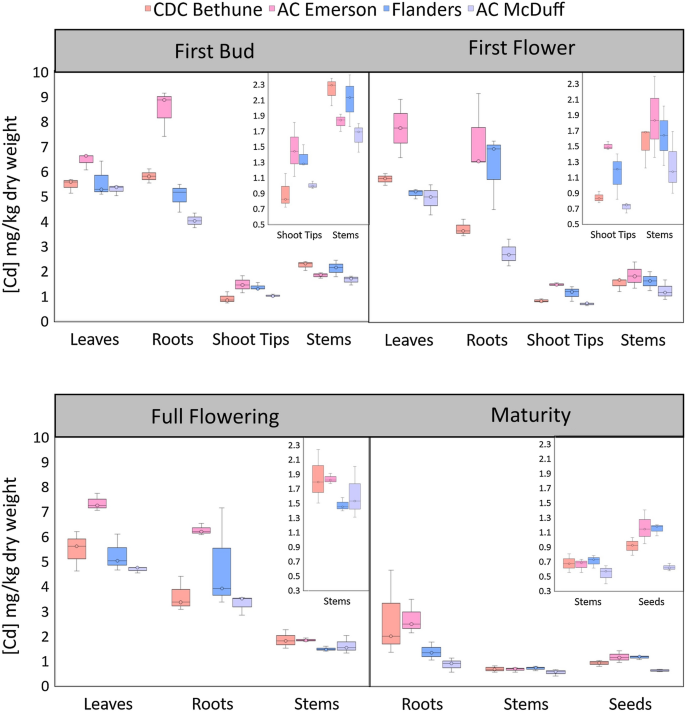

Cd concentration was measured in roots, stems, leaves and shoot tips in the four flax cultivars at various stages of development. The three-way interaction among genotype, tissue, and age was significant (F9,48 = 4.383, p < 0.001), so statistical differences within tissues and ages were tested to understand the relationship between genotype and age, and genotype and tissue.
Effect of genotype and age on Cd concentration in roots, stems, leaves and shoot tips
Within leaves and shoot tips, Cd concentration was stably affected by genotype (Fig. 2; Additional file 2: Table S2, Additional file 3). The concentration of Cd in leaves was similar in ‘CDC Bethune’, ‘Flanders’ and ‘AC McDuff’ (mean of 5.27 ± 0.10 mg/kg), and was significantly lower than in ‘AC Emerson’ (7.18 ± 0.29 mg/kg). The level of Cd in shoot tips between ‘AC Emerson’ and ‘Flanders’ was similar, and both were higher than in ‘CDC Bethune’ and ‘AC McDuff’.
In stems, stable effects of both genotype and age on Cd concentration were observed, though the effect of genotype was less significant (Additional file 2: Table S2, Additional file 3). Concentrations ranged from 0.39 to 2.42 mg/kg and the effect of genotype was driven by a difference between ‘AC McDuff’ (1.26 ± 0.15) and ‘CDC Bethune’ (1.57 ± 0.18) (Fig. 2; Additional file 3). Similarly, in stems of all genotypes, there was an overall pattern of decreasing Cd concentration with increasing age.
Within roots, there was a significant genotype-by-age interaction (Fig. 2; Additional file 2: Table S2, Additional file 3). The developmental pattern of Cd concentration was similar in ‘AC Emerson’ and ‘Flanders’, and in ‘CDC Bethune’ and ‘AC McDuff’. ‘AC Emerson’ and ‘Flanders’ exhibited stable Cd concentrations through the first three stages of development, which declined significantly at maturity. Roots of ‘CDC Bethune’ and ‘AC McDuff’, however, had a higher concentration of Cd at the first developmental stage compared to maturity, but showed no differences among the first flower stage, full flowering stage, and at maturity (Fig. 2; Additional file 3). Genotypic differences were not observed in roots at maturity, however, most interesting is the consistently higher Cd concentration in ‘AC Emerson’ compared to ‘AC McDuff’ during all stages of active growth.
Effect of genotype and tissue on Cd concentration through development
Within developmental stages, the effects of genotype, tissue, and the genotype-by-tissue interaction were compared using a two-way mixed ANOVA. Differences between tissues were dependent on genotype during the first three stages of development only. At maturity, only roots and stems were collected, with roots having a stably higher Cd concentration than stems (Fig. 2; Additional file 2: Table S3). Notably, the concentration of Cd in leaves was consistently higher than that in stems and shoot tips for all genotypes. The concentration in roots and leaves were similar, but some genotype-specific differences were observed at the first three developmental stages (Fig. 2).
Discussion
In Canada, flax is grown predominantly in the Prairie province of Saskatchewan, but also in Alberta and Manitoba [20]. Cd concentrations in Saskatchewan soils from the AP soil horizon (that is, in the upper layer soil that has been disrupted by human activity) range from 0.127 mg/kg to 0.456 mg/kg, with an average concentration of 0.32 mg/kg [21]. In other parts of the Prairies, soils contain anywhere from 0.1 – 7.9 mg/kg of Cd, but the vast majority contain less than the worldwide average of 0.53 mg/kg [22]. The soil used in our study contained ~ 0.45 mg/kg of Cd and can therefore be considered representative of most agricultural sites in the Canadian Prairies.
As expected, genotype has a significant effect on Cd concentration in reproductive structures and we determined ‘AC Emerson’ and ‘Flanders’ are consistently higher accumulators than ‘AC McDuff’. A previous study also found that ‘Flanders’ accumulates more Cd in its seeds than ‘AC McDuff’ [13], and our study indicates this relationship is not restricted to the seed. In addition, we found that the concentration of Cd is higher in the seeds than in flowers and immature bolls, which indicates that a substantial proportion of seed Cd is specifically redistributed to the seeds during the seed-filling stage.
The Cd concentration in seed in our study ranged from 0.57 mg/kg in ‘AC McDuff’ to 1.40 mg/kg in ‘AC Emerson’. A quick calculation shows that, even using the lowest accumulator included in this study, it would not be difficult to exceed the weekly-recommended 2.5 µg Cd per kg of body weight per week after consuming flaxseed. For example, according to this recommendation, a person weighing 60 kg (~ 132 lbs) should consume < 150 µg of Cd/week. The health claim for whole flaxseed states that the daily amount of ground flax seed to reduce cholesterol is 40 g (0.28 kg/week) [23]. If the seed contains 0.57 mg/kg (i.e. the concentration in ‘AC McDuff’), an individual following the health claim could be inadvertently ingesting 160 µg of Cd per week from flaxseed alone. This rough calculation puts into perspective the need to effectively and efficiently breed low Cd-accumulating cultivars.
The high level of Cd in ‘AC Emerson’ relative to ‘AC McDuff’ was consistent in most tissues. Had these two cultivars been compared in isolation, one would likely conclude that in flax the differences in seed Cd accumulation are due solely to initial differences in Cd uptake by the roots. While initial differences in Cd uptake by the roots appear to contribute to varietal differences, the story is more complicated when additional varieties are considered. ‘Flanders’, for example, also contained more Cd in its seeds than ‘AC McDuff’, but approximately the same concentration in roots and leaves. This is an important finding because it indicates that the concentration of Cd in seeds may also occur because of genotypic differences in the redistribution of Cd to the seeds during maturity, rather than solely from initial differences in Cd uptake.
It is important to note that ‘AC Emerson’ may represent a special case of high Cd accumulation since it is also tolerant to iron-deficiency chlorosis [15]. Iron transporters in rice and Arabidopsis have been reported to also transport Cd [24,25,26]. NRAMP1, specifically, is more highly expressed when plants are growing in iron-depleted soils [25]. Greater iron-use efficiency in ‘AC Emerson’ under low iron conditions could result in a concordant increase in Cd uptake. The consistently high levels of Cd observed in ‘AC Emerson’ may represent a unique difference in abundance and/or expression of root iron transporters. Mobilization and transport of Cd during reproductive development may be similar in ‘AC Emerson’ compared to the other varieties and it may be more typical that the genotypic differences in seed Cd accumulation are due to differences in redistribution of Cd from aerial tissues to the seeds.
Conclusion
Overall, results of our study suggest that genotypic differences in Cd accumulation in flax seeds may be partly due to differences in the redistribution of Cd to the seeds during maturation. In the case of chlorosis-tolerant ‘AC Emerson’, greater initial Cd uptake may contribute to differences in seed Cd levels. These results will be useful for future projects aimed at understanding the molecular mechanisms that determine varietal differences in the accumulation of Cd in flax seed.
