Survival of Bacillus spp. SUBB01 at high temperatures and a preliminary assessment of its ability to protect heat-stressed Escherichia coli cells
BMC Research Notes volume 8, Article number: 637 (2015)
The bacterial stressed state upon temperature raise has widely been observed especially in Escherichia coli cells. The current study extended such physiological investigation on Bacillus spp. SUBB01 under aeration at 100 rpm on different culture media along with the high temperature exposure at 48, 50, 52, 53 and 54 °C. Bacterial growth was determined through the enumeration of the viable and culturable cells; i.e., cells capable of producing the colony forming units on Luria–Bertani and nutrient agar plates up to 24 h. Microscopic experiments were conducted to scrutinize the successive physiological changes. Suppression of bacterial growth due to the elevated heat was further confirmed by the observation of non-viability through spot tests.
As expected, a quick drop in both cell turbidity and colony forming units (~104) along with spores were observed after 12–24 h of incubation period, when cells were grown at 54 °C in both Luria–Bertani and nutrient broth and agar. The critical temperature (the temperature above which it is no longer possible to survive) of Bacillus spp. SUBB01 was estimated to be 53 °C. Furthermore, a positive impact was observed on the inhibited E. coli SUBE01 growth at 45 and 47 °C, upon the supplementation of the extracellular fractions of Bacillus species into the growing culture.
Overall the present analysis revealed the conversion of the culturable cells into the viable and nonculturable (VBNC) state as a result of heat shock response in Bacillus spp. SUBB01 and the cellular adaptation at extremely high temperature.
Bacillus species are well known spore-forming pathogenic bacteria which are frequently found in the environment. Like Escherchia coli, these bacterial species may encounter a number of growth retarding stress factors, including nutrient depletion, temperature fluctuation, variation in pH and redox potential, limited water activity (aw), elevated level of reactive oxygen species (ROS), osmotic imbalance along with unusual solute concentrations, etc. [1–15]. In response to such stress causing stimuli, different bacterial species have been observed to employ various defensive strategies to cope with the stress signals [11, 16, 17]. To deal with the heat stress, a number of reports suggested the expression of the global molecular chaperones and other components (CspB and CspE in Bacillus spp. cells, GroEL and DnaK proteins in Salmonella spp., rpoE, rpoS and rpoH genes in E. coli and Pseudomonas spp.) to combat against the stress as well as to maintain the cellular homeostasis [5, 6, 13, 18–34].
Our earlier studies unraveled the influence of the temperature up-shift with the generation of oxidative stress retarding the amount of viable and culturable bacterial cells [5, 12, 13, 35]; spontaneous accumulation of the ROS not only at the beginning of the early stationary phase but also by the supplementation of hydrogen peroxide (H2O2) in the growing culture [2, 5, 32, 34] and the effect of different aeration speed on the cellular capability to produce the colony forming units on agar plates . In all instances, the physiological response of E. coli SUBE01, Pseudomonas spp. SUBP01, Salmonella spp. SUBS01 and Bacillus spp. SUBB01 against oxidative stress was observed through their sustainability in retaining the culturable cells [5, 12, 13, 32–34, 36]. Besides, the information on the defense strategy of these bacteria especially those belonging to Bacillus spp. SUBB01 under the static condition was evidently noticed through their phenotypic behavior . Along these lines of information, current study was conducted to further scrutinize the heat-shock response in Bacillus spp. SUBB01 under the shaking condition at 100 rpm in different culture media.
Demonstration of culturable Bacillus spp. SUBB01 under heat stress
Laboratory stock culture of Bacillus spp. SUBB01 and E. coli SUBE01 were used in this study. Experiments demonstrating the bacterial growth in terms of cell turbidity (optical density at 600 nm) and colony forming units (CFUs) were conducted as described earlier by Nur et al. . Nutrient agar (NA), Luria–Bertani (LB) agar, nutrient broth (NB) and Luria–Bertani broth were used for the assay of culturability . After 24 h of incubation on nutrient agar plates at 37 °C, one loopful of the bacterial culture was introduced into 5 ml nutrient broth followed by incubation at 37 °C for 4–6 h at 100 rpm (pre-culture). After adjusting the optical density of the pre-culture at 600 nm (OD600) to 0.1, 30 µL each was introduced into 2 different sets of 30 ml of nutrient broth and Luria–Bertani broth and incubated at 48, 50, 52, 53 and 54 °C at shaking condition (100 rpm). At the time points of 12 and 24 h, the cell growth was monitored by measuring OD600 and by counting the colony forming units (CFUs) . All the experiments were conducted three times. Statistical analysis regarding bacterial growth was performed by determining P value through t test. Standard deviations for all data have been indicated by error bars.
Assessing cell viability was further confirmed by the spot tests [13, 32–34]. As described previously, each the culture suspension was serially diluted in 9 ml nutrient broth to obtain up to 10−4 fold dilution. From each dilution, an aliquot of 5 µl was dropped on to the nutrient agar and Luria–Bertani agar, dried off for 15 min, and finally the plates were incubated at 37 °C for 24 h. Spotting on the agar was accomplished at 24 h of growth.
Demonstration of morphological changes
Simple staining (Crystal Violet, Hucker’s Solution) was conducted to assess the viability and the cellular morphology as previously done [32–34]. Spore staining (malachite green oxalate, safranin O) was conducted to differentiate the bacterial spores from vegetative cells following standard procedures . An aliquot of 10 µl from the bacterial culture suspension was removed at 24 h of growth, and the cellular morphology, shape and organization were observed under the light microscope (Optima Biological Microscope G206, manufactured in Taiwan) at 1000× magnification .
Preparation of organic and inorganic supplements
To prepare the extracellular fractions of bacteria (E. coli and Bacillus species), cells were grown separately in 6 different sets of Durham’s bottle containing 5 ml minimal broth, which were kept in a shaking water bath at 100 rpm for 24 h at 37 °C (optimum growth temperature) . Subsequently, actively growing bacterial cells were centrifuged at 4000 rpm for 15 min, and the resulting pellets were collected. Afterward pellets were centrifuged at 4000 rpm for 15 min for 3 times with 10 % glycerol and 50 mM CaCl2, respectively. The resulting supernatants were collected and used as organic supplements to observe the possible retrieval of E. coli cell viability both at high temperature stress (45 °C) and around the critical temperature (47 °C). Subsequently, a mixture of 20 mM MgSO4 and 5 mM ethylene diamine tetraacetic acid (EDTA) were used as inorganic supplement to conduct a similar experiment .
Results and discussions
Growth retardation of Bacillus spp. SUBB01upon heat shock
As stated earlier, our former studies demonstrated the effective defense strategies of Bacillus spp. SUBB01 in response to the oxidative stress artificially created by the supplementation of 6 mM H2O2 into the growing culture at an aeration speed of 100 rpm, while the E. coli SUBE01 and Pseudomonas spp. SUBP01 were found to loose culurability under the same condition. Interestingly, as has been noticed in our earlier study, a decrease in the amount in the culturable cells of Bacillus spp. SUBB01 was observed when challenged with an increased concentration (21 mM) of H2O2 . Apart from this stressed condition, the present study also employed a state of heat stress in the Bacillus cells since the increase in temperature is known to induce the accumulation of ROS inside the cells, which in turn largely accounts for losing cellular viability and culturability . In this investigation, when the Bacillus spp. SUBB01 cells were grown at 48–53 °C, around 4-log reduction in cell turbidity (Fig. 1a, b) as well as in the generation of the colony forming units (CFUs) were observed (Fig. 1c, d) up to 24 h of incubation periods in both nutrient and Luria–Bertani (LB) agar and broth. Notably, even as high as at 53 °C, cells were noted to produce the CFUs up to 102 CFU/ml. Interestingly, a complete elimination in both cell turbidity and colony forming units (CFUs) were observed when the cells were challenged at 54 °C, and hence indicating the critical temperature for Bacillus spp. SUBB01 to be at 53 °C (Fig. 1).
Consistent with the results acquired in the growth related experiments, no morphological changes were observed under light microscope when cells were subjected to growth temperatures of 48, 50, 52, 53 °C in both LB and nutrient broth for up to 24 h of incubation (Fig. 2). However, sporulation was observed at 54 °C. Earlier studies showed that the stressosome signaling complex of Bacillus spp. is activated in response to several environmental stresses including the housekeeping σ factor (σA) and alternative sigma factor (σB) during the early or mid stationary phase, providing the protective adaption from environmental changes [16, 38–44]. Several other studies showed that in response to heat shock, σF has been found to be activated, which in turn may protect cells from heat shock through sporulation means . Although such genetic analyses were not conducted in the present investigation; the results presented in our study clearly indicate that the cells lose their culturability at 54 °C, which indicates the dormant but viable state through sporulation.
Confirmative demonstration of loss of culturability of Bacillus spp. SUBB01cells
The sharp decline in culturable cell population fraction (Fig. 1), as well as the presence of spores under light microscope due to extreme high temperature (imposed by 54 °C) in Bacillus spp. SUBB01 cells (Fig. 2), led us to further cross-check of the stressed physiology of the cells through the spot tests as corroborated earlier [13, 32–34]. Consistent to the growth experiments as shown in Fig. 1, a steady growth was observed at 48, 50 and 52 °C with minimal variation or growth reduction in both nutrient and LB agar (Fig. 3) and a relatively slower growth was observed when bacterial cells were grown at 53 °C on both nutrient and LB agar, whereas a complete growth cessation was observed at 54 °C (Fig. 3).
As stated earlier, our previous investigations on stress responses in E. coli SUBE01 showed the influence of the temperature up-shift resulting in oxidative stress  which further led us to investigate the stress response against external and internal oxidative stress stimuli within Bacillus spp. SUBB01, E. coli SUBE01, Pseudomonas spp. SUBP01 and Salmonella spp. SUBS01 [5, 12, 13, 32–34, 36]. Those studies clearly revealed that E. coli SUBE01 lost viability upon heat shock . Moreover, the external and internal oxidative stresses in the early stationary phase of E. coli SUBE01 and Pseudomonas spp. SUBP01 culture were found to influence the formation of culturable cells; i.e., capable of forming colonies [2, 32–34]. With a succession of those work, the results presented in this study showed that Bacillus spp. SUBB01 is likely to exhibit the alteration in cellular homeostasis and culturability due to heat shock at 48–53 °C, under aeration (100 rpm) condition on different culture media. Notably, cells were found to lose culturablility completely at 54 °C, wherein spores were observed under light microscope (Fig. 2). Previously several studies reported that Bacillus cells exhibits six classes of heat shock genes upon environmental stress and the activation of the heat shock genes of Bacillus species especially depends on the commencement of specific temperature [45, 46].
Demonstration of growth retrieval

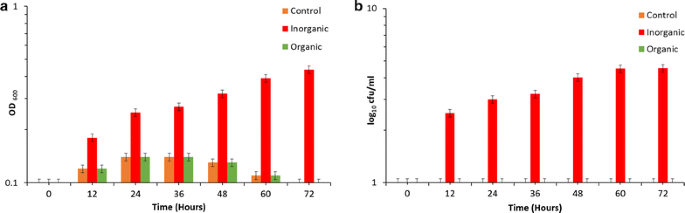

Another remarkable aspect was to evaluate the possible positive effect on the high temperature stressed E. coli SUBE01 growth at critical (45 °C) and above critical (47 °C) temperature  upon the supplementation of the extracellular fractions of Bacillus species as organic supplement which was further compared to the inorganic supplement into the cultures in the conditions as stated above (Figs. 4, 5). Previously it has been reported that Mg2+ and EDTA were capable of protecting the outer membrane from cell burst upon heat shock . Concerning that factual report in the current investigation, when the stressed culture of E. coli SUBE01 cells were treated with the extracellular fractions of Bacillus spp. around their critical temperature in both minimal agar and broth media, cells were surprisingly found to retrieve their growth after certain incubation periods (Figs. 4, 5). Moreover, no significant changes were observed, when cells were grown with the extracellular fractions of E. coli SUBE01 compared to those treated with inorganic supplement as illustrated in Fig. 6.
As stated earlier, our previous studies unraveled the defensive strategies of various bacterial species against heat shock and oxidative stress [5, 12, 13, 32–36]. Recently the response within yeast cells against heat stress and osmotic shock has also been observed . While the mechanisms of survival of E. coli cells have clearly been chalked out very recently , the retrieval of a heterogeneous E. coli population consisting of viable cells and defective cells (incapable of forming colonies on agar plates) by the Bacillus extracts as found in the current study is being reported for the first time so far to our knowledge. Such an experimental demonstration could be of significance to understand the cellular survival strategies mediated by different bacterial species.
Despite the lack of molecular investigation as well as an apparent impression of descriptive nature of research stipulation, the data in the current study is quite consistent to the previous findings with the novel projection on the critical growth temperature of Bacillus strain. Moreover, the work clearly illustrated the phenotypic changes in the bacterial cell caused by the heat shock at the optimum speed of aeration which, unlike to that of E. coli, is relatively new in the field of heat shock response in Bacillus cells. Such preliminary findings could be worth incrementing the existing knowledge on bacterial cell biology and signal transduction. Finally, the observation of E. coli growth retrieval upon supplementation of the extracellular fractions from Bacillus spp. have been indeed interesting to ponder on the heat stress resistance mechanisms of Bacillus spp. However, further molecular studies on the genetic makeup of such stress responses as well as the growth retrieval mechanisms by means of exogenous organic factors (Bacillus extracts) would be of greater effectiveness.
Givskov M, Eberl L, Moller S, Poulsen LK, Molin S. Responses to nutrient starvation in Pseudomonas Putida KT2442: analysis of general cross-protection, cell shape, and macromolecular content. J Bacteriol. 1994;176:7–14.
Kabir MS, Yamashita D, Noor R, Yamada M. Effect of σS on σE-directed cell lysis in Escherichia coli early stationary phase. J Mol Microbiol Biotechnol. 2004;8:189–94.
Nystrom T. Role of oxidative carbonylation in protein quality control and senescence. EMBO J. 2005;24:1311–7.
Den Besten HMW, Mols M, Moezelaar R, Zwietering MH, Abee T. Phenotypic and transcriptomic analyses of mildly and severely salt-stressed Bacillus cereus ATCC 14579 cells. Appl Environ Microbiol. 2009;75:4111–9.
Noor R, Murata M, Yamada M. Oxidative stress as a trigger for growth phase-specific sigma-E dependent cell lysis in Escherichia coli. J Mol Microb Biotech. 2009;17:177–87.
Noor R, Murata M, Nagamitsu H, Klein G, Rain S, Yamada M. Dissection of sigma-E dependent cell lysis in Escherichia coli: roles of RpoE regulators RseA, RseB and periplasmic folding catalyst Ppid. Genes Cells. 2009;14:885–99.
Ju KS, Parales RE. Nitro-aromatic compounds, from synthesis to biodegradation. Microbiol Mol Biol R. 2010;74:250–72.
Fuchs G, Boll M, Heider J. Microbial degradation of aromatic compounds—from one strategy to four. Nat Rev Microbiol. 2011;9:803–16.
Kivisaar M. Evolution of catabolic pathways and their regulatory systems in synthetic nitroaromatic compounds degrading bacteria. Mol Microbiol. 2011;82:265–8.
Deepika G, Karunakaran E, Hurley CR, Biggs CA, Charalampopoulos D. Influence of fermentation conditions on the surface properties and adhesion of Lactobacillus rhamnosus GG. Microb Cell Fact. 2012;11:116.
Huillet E, Tempelars MH, Andre-Leroux G, Wanapaisan P, Bridoux L, Makhzamis S, Panbangred W, Martin-Verstraete I, Abee T, Lereclus D. PIcRa, a new quorum-sensing regulator from Bacillus cereus, play a role in oxidative stress response and cystein metabolism in stationary phase. PLoS One. 2012;7:e51047.
Murata M, Noor R, Nagamitsu H, Tanaka S, Yamada M. Novel pathway directed by sigma-E to cause cell lysis in Escherichia coli. Genes Cells. 2012;17:234–47.
Noor R, Islam Z, Munshi SH, Rahman F. Influence of temperature on Escherichia coli growth in different culture media. J Pure Appl Microbiol. 2013;7:899–904.
Den Besten HMW, Effraimidou S, Abee T. Catalase activity as a biomarker for mild stress-induced robustness in Bacillus weihenstephanensis. Appl Environ Microbiol. 2013;79:57–62.
Shimizu K. Regulation systems of bacteria such as Escherichia coli in response to nutrient limitation and environmental stresses. Metabolites. 2013;4:1–35.
Price CW, Fawcett P, Ceremonie H, Su N, Murphy CK, Youngman P. Genomewide analysis of the general stress response in Bacillus subtilis. Mol Microbiol. 2001;41:757–74.
Phillips ZE, Strauch MA. Bacillus subtilis sporulation and stationary phase gene expression. Cell Mol Life Sci. 2002;59:392–402.
Ananthan J, Goldberg AL, Voellmy R. Abnormal proteins serve as eukaryotic stress signals and trigger the activation of heat shock genes. Science. 1986;232:522–4.
Sarniguet A, Kraus J, Henkels MD, Muehlchen AD, Loper JE. The sigma factor σS affects antibiotic production and biological control activity of Pseudomonas fluorescens Pf-5. Proc Natl Acad Sci USA. 1995;92:12255–9.
Mayr B, Kaplan T, Lechner S, Scherer S. Identification and purification of a family of dimeric major cold shock protein homologs from the psychrotrophic Bacillus cereus WSBC 10201. J Bacteriol. 1996;178:2916–25.
Ramos-Gonzalez MI, Molin S. Cloning, sequencing, and phenotypic characterization of the rpoS gene from Pseudomonas putida KT2440. J Bacteriol. 1998;180:3421–31.
Jorgensen F, Bally M, Chapon-Herve V, Michel G, Lazdunski A, et al. RpoS-dependent stress tolerance in Pseudomonas aeruginosa. Microbiology. 1999;145:835–44.
Suh SJ, Silo-Suh L, Woods DE, Hassett DJ, West SHE, et al. Effect of rpoS mutation on the stress response and expression of virulence factors in Pseudomonas aeruginosa. J Bacteriol. 1999;181:3890–7.
Whistler CA, Stockwell VO, Loper JE. Lon protease influences antibiotic production and UV tolerance of Pseudomonas fluorescens Pf-5. Appl Environ Microbiol. 2000;66:2718–25.
Miller CD, Kim YC, Anderson AJ. Competitiveness in root colonization by Pseudomonas putida requires the rpoS gene. Can J Microbiol. 2001;47:41–8.
Miller CD, Mortensen WS, Braga GUL, Anderson AJ. The rpoS gene in Pseudomonas syringae is important in surviving exposure to the near-UV in sunlight. Curr Microbiol. 2001;43:374–7.
Periago PM, Schaik WV, Abee T, Wouters JA. Identification of proteins involved in the heat stress response of Bacillus cereus ATCC 14579. Appl Environ Microbiol. 2002;68:3486–95.
Stockwell VO, Loper JE. The sigma factor RpoS is required for stress tolerance and environmental fitness of Pseudomonas fluorescens Pf-5. Microbiology. 2005;151:3001–9.
Heeb S, Valverde C, Gigot-Bonnefoy C, Haas D. Role of the stress sigma factor RpoS in GacA/RsmA-controlled secondary metabolism and resistance to oxidative stress in Pseudomonas fluorescens CHA0. FEMS Microbiol Lett. 2005;243:251–8.
Akerfelt M, Morimoto RI, Sistonen L. Heat shock factors: integrators of cell stress, development, and lifespan. Nat Rev Mol Cell Biol. 2010;11:545–55.
Morimoto RI. The heat shock response: systems biology of proteotoxic stress in aging and disease. Cold Spring Harb Symp Quant Biol. 2012;76:91–9.
Munna MS, Nur IT, Rahman T, Noor R. Influence of exogenous oxidative stress on Escherichia coli cell growth, viability and morphology. Am J BioSci. 2013;1:59–62.
Munna MS, Tamanna S, Afrin MR, Sharif GA, Mazumder C, et al. Influence of aeration speed on bacterial colony forming unit (CFU) formation capacity. Am J Microbiol Res. 2014;2:47–51.
Nur IT, Munna MS, Noor R. Study of exogenous oxidative stress response in Escherichia coli, Pseudomonas spp., Bacillus spp. and Salmonella spp. Turk J Biol. 2014;38:502–9.
Yamada M, Noor R, Nagamitsu H, Murta M. The higher temperature, the more oxidative stress and lysis in Escherichia coli. In: The 3rd International Conference on Fermentation Technology for Value Added Agricultural Products; Khon Kaen; 2009.
Nitta T, Nagamitsu H, Murata M, Izu H, Yamada M. Function of the sigma-E regulon in dead-cell lysis in stationary phase Escherichia coli. J Bacteriol. 2000;182:5231–7.
Cappuccino JG, Shermen N. Microbiology; laboratory manuals. San Francisco: Benjamin/Cummings Publishing Company Incorporated; 1996.
Hecker M, Volker U. General stress response of Bacillus subtilis and other bacteria. Adv Microb Physiol. 2001;44:35–91.
Price CW: General stress response in Bacillus Subtilis and its closest relatives: From Genes to Cells. Washington, DC. Am Soc Microbiol 2002: 369–84.
Helmann JD, Wu MFW, Gaballa A, Kobel PA, Morshedi MM, Fawcett P, Paddon C. The global transcriptional response of Bacillus subtilis to peroxide stress is coordinated by three transcription factors. J Bacteriol. 2003;185:243–53.
Petersohn A, Brigulla M, Haas S, Hoheisel JD, Völker U, Hecker M. Global analysis of the general stress response of Bacillus subtilis. J Bacteriol. 2001;183:5617–31.
Hecker M, Pane-Farre J, Volker U. SigB-dependent general stress response in Bacillus subtilis and related Gram-positive bacteria. Annu Rev Microbiol. 2007;61:215–36.
Hardwick SW, Pané-Farré J, Delumeau O, Marles-Wright J, Hecker M, Lewis RJ. Structural and functional characterization of partner switching regulating the environmental stress response in Bacillus subtilis. Am Soc Biochem Mol Biol. 2007;283:11562–72.
Nannapaneni P, Hertwig F, Depke M, Hecker M, Mäder U, Volker U, Steil L, van Hijum SA. Defining the structure of the general stress regulon of Bacillus subtilis using targeted microarray analysis and random forest classification. Microbiology. 2012;158:696–707.
Schumann W. The Bacillus subtilis heat shock stimulon. Cell Stress Chaperone. 2003;8:207–17.
Versteeg S, Escher A, Wende A, Wiegert T, Schumann W. Regulation of the Bacillus subtilis heat shock gene htpG is under positive control. J Bacteriol. 2003;185:466–74.
Munna MS, Humayun S, Noor R. Influence of heat shock and osmotic stresses on the growth and viability of Saccharomyces cerevisiae SUBSC01. BMC Res Notes. 2015;8:369.
Noor R. Mechanism to control the cell lysis and the cell survival strategy in stationary phase under heat stress. SpringerPlus. 2015;4:599.
This work was carried out in collaboration between all authors. Author MSM managed the analyses of the study and wrote the first draft of the manuscript. Authors JT and MMHA performed the experiments. Author ITN managed the literature searches. Author RN designed the study and critically revised the manuscript. All authors read and approved the final manuscript.
We thank Stamford University Bangladesh for providing us the facilities to carry out the experiments. However, the authors received no specific funding for this work.
All the authors are from Department of Microbiology, Stamford University Bangladesh. Authors MSM, JT and ITN are thesis students of MS program and MMHA is thesis students of BSc. (Hons) program of the department. Author RN is corresponding author of the manuscript, has been working as Associate Professor and Chairman of the Department of Microbiology, Stamford University Bangladesh.
The authors declare that they have no competing interest.
