Carbon dioxide receptor genes and their expression profile in Diabrotica virgifera virgifera
BMC Research Notes volume 9, Article number: 18 (2016)
Diabrotica virgifera virgifera, western corn rootworm, is one of the most devastating species in North America. D. v. virgifera neonates crawl through the soil to locate the roots on which they feed. Carbon dioxide (CO2) is one of the important volatile cues that attract D. v. virgifera larvae to roots.
In this study, we identified three putative D. v. virgifera gustatory receptor genes (Dvv_Gr1, Dvv_Gr2, and Dvv_Gr3). Phylogenetic analyses confirmed their orthologous relationships with known insect CO2 receptor genes from Drosophila, mosquitoes, and Tribolium. The phylogenetic reconstruction of insect CO2 receptor proteins and the gene expression profiles were analyzed. Quantitative analysis of gene expression indicated that the patterns of expression of these three candidate genes vary among larval tissues (i.e., head, integument, fat body, and midgut) and different development stages (i.e., egg, three larval stages, adult male and female).
The Dvv_Gr2 gene exhibited highest expression in heads and neonates, suggesting its importance in allowing neonate larvae to orient to its host plant. Similar expression patterns across tissues and developmental stages for Dvv_Gr1 and Dvv_Gr3 suggest a potentially different role. Findings from this study will allow further exploration of the functional role of specific CO2 receptor proteins in D. v. virgifera.
Many insects are able to detect carbon dioxide (CO2) in the environment for a variety of purposes, such as the location of their vertebrate hosts by hematophagous insects  evaluation of floral quality by lepidopterans , and the regulation of potentially lethal CO2 concentrations by social insects in colonies . Insect herbivores, such as the western corn rootworm Diabrotica virgifera virgifera LeConte (Coleoptera: Chrysomelidae), use CO2 as an important host finding cue .
Diabrotica virgifera virgifera is one of the most devastating corn pests in North America . The common name, western corn rootworm, refers to the larval life stage that feeds on corn roots, which moves through the soil to find roots of a suitable host . Neonates that hatch in the spring from overwintering eggs must crawl through the soil to locate the roots on which they feed. It has been suggested that CO2 emitted by corn roots is one of the important volatile cues that attract D. v. virgifera larvae to corn roots .
In general, a chemical signal from the environment is converted to an electrical signal that can be interpreted by the insect nervous system due the binding of a ligand to a receptor protein . Most of these chemosensory proteins are recognized as members of two evolutionarily related chemosensory receptor families; the odorant receptors (ORs) and gustatory receptors (GRs) [8–10]. Three groups of GR receptors (GR1–3) appear to contribute to the detection of CO2 in insects . In Drosophila melanogaster, DmGR21a and DmGR63a (belonging to the Gr1 and Gr3 groups, respectively) are co-expressed in olfactory receptor neurons of the sensilla on the antennae that are sensitive to CO2 and both proteins are required for CO2 detection [12–14]. In mosquitos and other insects, a third group of Gr genes is also identified and designated as Gr2 . Although all three Gr genes are expressed in the sensilla located on the maxillary palps in mosquitoes, expression of only Gr1 and Gr3 is required for CO2 perception [13, 15, 16]. The orthologs of three CO2 receptor genes have been identified from a lepidopteran species (the silk moth Bombyx mori) and from several coleopteran species (the red flour beetle Tribolium castaneum, the mountain pine beetle Dendroctonus ponderosae, and the European spruce bark beetle Ips typographus) [11, 17]. Interestingly, in D. ponderosae, the Gr2 gene was only identified from the draft genome and from larval RNAseq data, but not from antennal transcriptomes [17, 18].
In this study, we have taken significant steps to further investigate CO2 receptor genes in D. v. virgifera. We identified three putative CO2 receptor genes from a larval D. v. virgifera transcriptome  and we characterized the expression of those genes in different D. v. virgifera tissues and developmental stages.
Identification of CO2 receptor genes from the D. v. virgifera transcriptomes
Protein sequences of the following CO2 receptor genes were obtained from the National Center for Biotechnology Information database: DmGr21a (NM_078724.6) and DmGr63a (NM_001144411.1) from D. melanogaster, GPRGR24 (DQ989013.1), GPRGR22 (DQ989011.1), and GPRGR23 (XM_312786.3) from Anopheles gambiae, and TcGr1 (AM292331.2), TcGr2 (XM_008193301.1), and TcGr3 (XM_001814609.2) from T. castaneum. These protein sequences were used as the queries for tblastn similarity searches  against the combined transcriptome obtained from D. v. virgifera eggs, neonates, and midgut of 3rd instar larvae  with 1 × 10−100 as the E-value threshold to identify CO2 receptor gene candidates in D. v. virgifera.
In order to confirm our assembled CO2 receptor transcript sequences and examine their exon–intron structures, we also compared the protein sequences of the three CO2 receptor candidates we obtained against the draft D. v. virgifera genome sequences (Hugh M. Robertson, personal communication) using tblastn similarity search. Prediction of membrane protein topology was achieved using TOPCONS .
Phylogenetic reconstruction of insect CO2 receptor proteins
Multiple alignments of CO2 receptor protein sequences were generated using MAFFT (ver. 7.215) with the L-INS-i algorithm . The maximum-likelihood phylogenetic tree was reconstructed using PhyML (ver. 3.0)  with the LG substitution model. Non-parametric bootstrap analysis was performed with 1000 pseudoreplicates .
Expression studies of the three Dvv_Gr genes
The adults and eggs of a non-diapause strain of D. v. virgifera used in this study were purchased from Crop Characteristics (Farmington, MN). The adults were held in rearing cages with artificial diet and maintained in a growth chamber with 23 ± 1 °C and 75 ± 5 % relative humidity. The freshly laid eggs received in petri dish were wrapped with foil and kept in an incubator at 27 ± 1 °C and 75 ± 5 % relative humidity until hatching.
The gene expression profiles of the three putative CO2 receptors genes were analyzed in two different experiments involving four different tissues and six developmental stages. Five 3rd instars were dissected for samples from integument, midgut, fat body and head with thorax. The same tissues from five 3rd instar larvae were pooled as a single replicate. All collected tissues and whole bodies from different development stages were snap-frozen in liquid nitrogen and stored at −80 °C until used. The samples for different development stages included pooled samples of eggs, 1st (30 larvae), 2nd (15 larvae) and 3rd (6 larvae) instar, and individual female and male adults. Each treatment condition was replicated three times.
RNA extraction and cDNA synthesis
Total RNA was extracted using RNeasy Mini Kit (Qiagen) according to the manufacture’s instructions. The RNA integrity was confirmed on 1 % agarose electrophoresis gels and NanoDrop-1000 (Thermo) before cDNA synthesis. RNA (1000 ng) from each sample was used to synthesize the cDNA using the QuantiTect Reverse Transcription kit (QIAGEN) according to manufacturer’s instructions. The cDNAs were quantified using a NanoDrop-1000 and stored in −20 °C until used.
Primer design and efficiency test
Based on the nucleotide sequences of the three Dvv_Gr genes, as well as two reference genes, EF1a (elongation factor 1a) and beta-actin , the primers for qPCR were designed using Primer3Plus (http://www.bioinformatics.nl/cgi-bin/primer3plus/primer3plus.cgi/). The primer efficiency test (E) and correlation coefficients (R2) were calculated and qRT-PCR assays were performed using Fast SYBR Green Master Mix (Applied Biosystems, Cat. 4385612) on Applied Biosystems® 7500 Real-Time PCR Systems at default setting (Table 1).
Real-time quantitative PCR (qRT-PCR) and data analysis
The qPCR experiments were conducted with SYBR Green PCR Master Mix kit following the manufacturer’s instructions. Briefly, the PCR mixture contained 1 µL synthesized cDNA (~35 ng), 0.2 µL of each primer (10 µM), 5 µL of the SYBR green PCR master mix and 3.6 µL of ddH2O. All reactions were carried out in triplicate per template in a final volume of 10 µL. qRT-PCR reactions were performed on the 7500 Fast Real-Time PCR system (Applied Biosystems) with the following cycling conditions: one cycle at 95 °C (20 s), followed by 40 cycles of denaturation at 95 °C (3 s), annealing and extension at 60 °C for 30 s. At the end of each qRT-PCR reaction, a melting curve was generated to confirm a single peak and rule out the possibility of primer-dimer and non-specific product formation. The EF1a (elongation factor 1a) and actin genes were used as endogenous controls for tissue and stage experiments, respectively . Third instar larvae were selected as reference stage for comparisons in both experiments.
The 2−ΔΔCt method  was used to calculate the relative expression level of target gene in the samples as compared to control sample. The one-way analysis of variance (ANOVA) was used for statistical analysis and Tukey test (at P < 0.05) for statistical significance with Sigma Plot Program (version 12.0).
Identification of D. v. virgifera CO2 receptor genes
Three CO2 receptor gene candidates were identified from the combined transcriptome assembled from egg, neonates, and midgut of 3rd instar larvae from D. v. virgifera . The maximum-likelihood phylogenetic analysis at the amino-acid level including CO2 receptors from D. melanogaster, A. gambiae, and T. castaneum showed clear orthologous relationships for the three candidate genes (Fig. 1). We therefore named these D. v. virgifera genes as Dvv_Gr1, Dvv_Gr2, and Dvv_Gr3 following the convention proposed by Robertson and Kent . All three CO2 receptor proteins were predicted to have seven transmembrane regions with intercellular N-terminals. This topology, which is opposite to those of the regular 7-transmembrane G-protein coupled receptors, is consistent with what has been reported for other insect chemoreceptors .
Structures of D. v. virgifera CO2 receptor genes

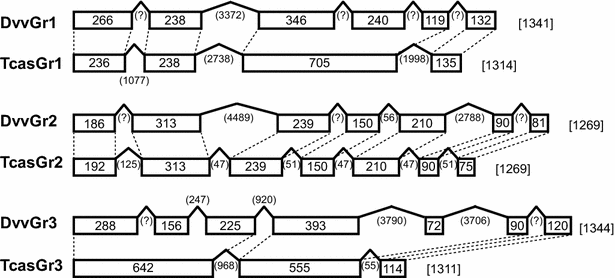

We confirmed the assembled sequences of the three CO2 receptor transcripts against the draft D. v. virgifera genome sequences (Hugh M. Robertson, personal communication). This comparison also enabled us to identify intron–exon structures of each CO2 receptor gene. While the Dvv_Gr2 gene structure is consistent with the Tribolium ortholog (TcGr2), the other two Dvv_Gr genes have more introns compared to their Tribolium orthologs (Fig. 2).
Expression studies of the three Dvv_Gr genes

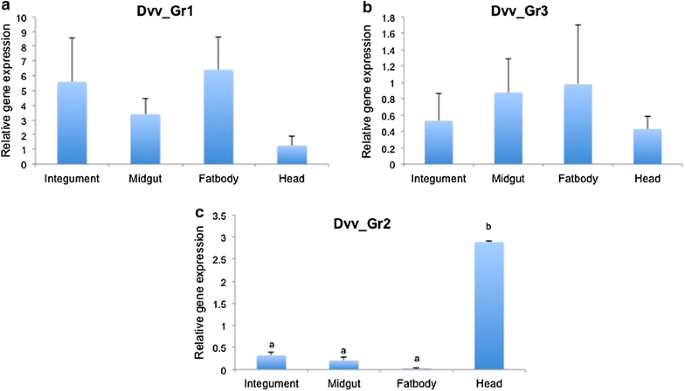

The expression levels of three D. v. virgifera CO2 receptor gene candidates were quantified and compared among different tissues and development stages. No significant difference was observed in expression levels of Dvv_Gr1 and Dvv_G3 among different tissues including larval integument, midgut, fatbody and head (Fig. 3a, b). In contrast, the expression of Dvv_Gr2 varied significantly among different tissues and was expressed almost five-fold higher in the head as compared to expression in integument and midgut (Fig. 3c).
No significant differences in expression of Dvv_Gr1 among different developmental stages were observed although third instars appeared to exhibit higher expression compared to second instars (Fig. 4a). Dvv_Gr3 did not vary in expression level among the developmental stages analyzed (Fig. 4b). In contrast, the level of expression of Dvv_Gr2 gene in eggs and first instar larvae was significantly (fivefold) higher, compared to the other instars and adults (Fig. 4c).
Many studies have been conducted to identify and validate the function of chemosensory receptors in insects and their role in allowing insects to perceive their environment [11, 13, 16, 17, 28–31]. The three genes (Dvv_Gr1, Dvv_Gr2, and Dvv_Gr3) were identified from a D. v. virgifera transcriptome based on significant similarity to CO2 receptor genes from D. melanogaster, A. gambiae, and T. castaneum and confirm their existence in western corn rootworms. Importantly, the relative expression of these genes among different larval tissues and developmental stages suggest a possible role for at least one of these genes in orientation to CO2 and potentially host finding. The entire larval stage of D. v. virgifera is spent underground feeding on roots. Neonates must crawl relatively long distances through the soil to locate roots of a suitable host after hatching . Previous research has shown that neonates are attracted to carbon dioxide in the soil, which may serve as a mechanism of host finding . Gr1 and Gr3 orthologs in Drosophila (Dm21a and Dm63a) were found to mediate carbon dioxide detection in adults [12–14]. However, for the three CO2 receptor orthologs identified from the T. castaneum genome (TcasGr1, TcasGr2, and TcasGr3) , their function has yet to be documented. No expression differences were observed among the four different D. v. virgifera tissues for Dvv_Gr1 and Dvv_Gr3 genes (Fig. 3a, b). However, Dvv_Gr2 was highly expressed in the head as compared to fat body, integument, and midgut (Fig. 3c). The higher expression of Dvv_Gr2 in the head may suggest localization of the receptor to chemosensory organs associated with mouthparts and a specific role for this gene as a carbon dioxide receptor in D. v. virgifera larvae. Similar expression patterns from the two CO2 receptor genes from Drosophila where expression is localized in olfactory receptor neurons of the sensilla on the antennae have been previously noted . Similarly, all three CO2 receptor genes in mosquitoes are expressed on the maxillary palps [13, 15, 16].
Erdelyan et al.  reported that in Aedes aegypti and Culex pipiens quinquefasciatus, the Gr1 and Gr3 genes were expressed at higher levels in adults than in larvae and pupae. For blood-feeding mosquitoes, CO2 is a chemical stimulus emitted in the breath of animal hosts and produces host-seeking behaviors in adult mosquitos [33, 34]. In contrast, CO2 is used by D. v. virgifera larvae to locate the roots of growing corn plants for feeding [6, 35]. Therefore, the relatively high expression of Dvv_Gr2 gene in the head might indicate a possible role for this gustatory receptor gene that mediates CO2 detection in D. v. virgifera larvae.
The level of expression of the Dvv_Gr2 gene in eggs and first instar larvae was higher than in other development stages (Fig. 4c). CO2 is given off by growing corn roots in the soil or potentially other sources of CO2 that are associated with plant growth, and neonate larvae that hatch in the spring from overwintering eggs must crawl through the soil to locate the roots on which they feed . Higher expression of Dvv_Gr2 gene in eggs and first instars is consistent with a possible role in host finding, which is different from mosquitoes that need to orient to hosts in the adult stage . Interestingly, for D. ponderosae, the two Gr genes (Gr1 and Gr3) were identified from an antenna-specific transcriptome but Gr2 was only identified from a draft genome (Keeling et al., in press) and from larval RNAseq data . The specific expression of Gr2 in larvae further suggests a role in orientation of neonates to CO2 detection in D. v. virgifera.
Specific genes potentially involved in CO2 perception in D. v. virgifera have been identified and were differentially expressed among development stages and tissues. Based on expression results, Dvv_Gr2 may be more important in host orientation of neonates. It should be noted that these results contrast those from mosquitoes and fruit flies where Gr1 and Gr3 have been identified as playing a more important role in CO2 perception. Differences in receptors between adults and larvae may explain such results. Additional studies to validate the relative importance of these genes in larval host orientation will provide insight into the relative roles for these gustatory receptors in rootworm larvae. Previous success with RNA interference in both adult and larval rootworms [36–38] should provide an effective tool for validating functions for these putative receptors through loss of function assays.
The importance of CO2 as an orientation cue for neonates is well documented in rootworm larvae  and may provide a potential mechanism to protect corn plants from rootworm damage. The identification of specific genes responsible for CO2 perception may provide important information for designing rootworm specific management approaches that disrupt rootworm host finding.
Availability of supporting data
The data sets supporting the results of this article are included within the article.
Bowen MF. The sensory physiology of host-seeking behavior in mosquitoes. Ann Rev Entomol. 1991;36:139–58.
Thom C, Guerenstein PG, Mechaber WL, Hildebrand JG. Floral CO2 reveals flower profitability to moths. J Chem Ecol. 2004;30(6):1285–128830.
Kleineidam C, Tautz J. Perception of carbon dioxide and other “air condition” parameters in the leaf cutting ant Atta cephalotes. Naturwissenschaften. 1996;83:566–8.
Bernklau EJ, Bjostad LB. Behavioral responses of first-instar western corn rootworm (Coleoptera: Chrysomelidae): to carbon dioxide in a glass bead bioassay. J Econ Entomol. 1998;91(2):445–56.
Sappington TW, Siegfried BD, Guillemaud T. Coordinated Diabrotica genetics research: accelerating progress on an urgent insect pest problem. Am Entomol. 2006;52(2):90–7.
Short DE, Luedtke RJ. Larval migration of the western corn rootworm. J Econ Entomol. 1970;63:325–6.
Sato K, Touhara K. Insect olfaction: receptors, signal transduction, and behavior. Results Probl Cell Differ. 2009;47:121–38.
Clyne PJ, Warr CG, Freeman MR, Lessing D, Kim J, Carlson JR. A novel family of divergent seven-transmembrane proteins: candidate odorant receptors in Drosophila. Neuron. 1999;22(2):327–38.
Clyne PJ, Warr CG, Carlson JR. Candidate taste receptors in Drosophila. Science. 2000;287(5459):1830–4.
Robertson HM, Warr CG, Carlson JR. Molecular evolution of the insect chemoreceptor gene superfamily in Drosophila melanogaster. Proc Natl Acad Sci USA. 2003;100(Suppl 2):14537–42.
Robertson HM, Kent LB. Evolution of the gene lineage encoding the carbon dioxide receptor in insects. J Insect Sci. 2009;9(19):1–14.
Suh GS, Wong AM, Hergarden AC, Wang JW, Simon AF, Benzer S, et al. A single population of olfactory sensory neurons mediates an innate avoidance behaviour in Drosophila. Nature. 2004;431(7010):854–9.
Jones WD, Cayirlioglu P, Kadow IG, Vosshall LB. Two chemosensory receptors together mediate carbon dioxide detection in Drosophila. Nature. 2007;445(7123):86–90.
Kwon JY, Dahanukar A, Weiss LA, Carlson JR. The molecular basis of CO2 reception in Drosophila. Proc Natl Acad Sci USA. 2007;104(9):3574–8.
Lu T, Qiu YT, Wang G, Kwon JY, Rutzler M, Kwon HW, et al. Odor coding by maxillary palp neurons of the malaria vector mosquito Anopheles gambiae. Curr Biol. 2007;17(18):1533–44.
Erdelyan CNG, Mahood TH, Bader TSY, Whyard S. Functional validation of the carbon dioxide receptor genes in Aedes aegypti mosquitoes using RNA interference. Insect Mol Biol. 2012;21(1):119–27.
Andersson MN, Grosse-Wilde E, Keeling CI, Bengtsson JM, Yuen MM, Li M, Hillbur Y, Bohlmann J, Hansson BS, Schlyter F. Antennal transcriptome analysis of the chemosensory gene families in the tree killing bark beetles, Ips typographus and Dendroctonus ponderosae (Coleoptera: Curculionidae: Scolytinae). BMC Genom. 2013;14(198):1–16.
Keeling CI, Yuen MMS, Liao NY, Docking TR, Chan SK, Taylor GA, et al. Draft genome of the mountain pine beetle, dendroctonus ponderosae Hopkins, a major forest pest. Genome Biol. 2013;14(3):R27.
Eyun SI, Wang H, Pauchet Y, Ffrench-Constant RH, Benson AK, Valencia-Jimenez A, et al. Molecular evolution of glycoside hydrolase genes in the western corn rootworm (Diabrotica virgifera virgifera). PLoS ONE. 2014;9(4):e94052.
Camacho C, Coulouris G, Avagyan V, Ma N, Papadopoulos J, Bealer K, et al. BLAST+: architecture and applications. BMC Bioinformatics. 2009;10:421.
Bernsel A, Viklund H, Hennerdal A, Elofsson A. TOPCONS: consensus prediction of membrane protein topology. Nucleic Acids Res. 2009;37(Supp 2):W465–8.
Katoh K, Standley DM. MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol Biol Evol. 2013;30:772–80.
Guindon S, Dufayard JF, Lefort V, Anisimova M, Hordijk W, Gascuel O. New algorithms and methods to estimate maximum-likelihood phylogenies: assessing the performance of PhyML 3.0. Syst Biol. 2010;59:307–21.
Felsenstein J. Confidence limits on phylogenies: an approach using the bootstrap. Evolution. 1985;39:783–91.
Rodrigues TB, Khajuria C, Wang H, Matz N, Cunha Cardoso D, et al. Validation of reference housekeeping genes for gene expression studies in Western Corn rootworm (Diabrotica virgifera virgifera). PLoS One. 2014;9(10):e109825.
Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2−∆∆CT method. Methods. 2001;25:402–8.
Benton R, Sachse S, Michnick SW, Vosshall LB. Atypical membrane topology and heteromeric function of drosophila odorant receptors in vivo. PLoS Biol. 2006;4(2):e20.
Zhang HJ, Anderson AR, Trowell SC, Luo AR, Xiang ZH, Xia QY. Topological and functional characterization of an insect gustatory receptor. PLoS One. 2011;6:e24111.
Howlett N, Dauber KL, Shukla A, Morton B, Glendinning JI, Brent E, et al. Identification of chemosensory receptor genes in Manduca sexta and knockdown by RNA interference. BMC Genom. 2012;13:211.
Li KM, Ren LY, Zhang YJ, Wu KM, Guo YY. Knockdown of microplitis mediator odorant receptor involved in the sensitive detection of two chemicals. J Chem Ecol. 2012;38(3):287–94.
Dong X, Zhong G, Hu M, Yi X, Zhao H, Wang W. Molecular cloning and functional identification of an insect odorant receptor gene in Spodoptera litura (F.) for the botanical insecticide rhodojaponin III. J Insect Physiol. 2013;59(1):26–32.
Tribolium Genome Sequencing Consortium. The genome of the model beetle and pest Tribolium castaneum. Nature. 2008;452:949–55.
Gillies MT. The role of carbon dioxide in host-finding in mosquitoes (Diptera: Culicidae): a review. Bull Entomol Res. 1980;70(4):525–32.
Takken W, Knols BG. Odor-mediated behavior of Afrotropical malaria mosquitoes. Annu Rev Entomol. 1999;44:131–57.
Strnad SP, Bergman MK, Fulton WC. First-instar western corn rootworm (Coleoptera: Chrysomelidae) response to carbon dioxide. Environ Entomol. 1986;15:839–42.
Khajuria C, Vélez AM, Rangasamy M, Wang H, Fishilevich E, Frey ML, et al. Parental RNA interference of genes involved in embryonic development of the western corn rootworm, Diabrotica virgifera virgifera LeConte. Insect Biochem Mol Biol. 2015;63:54–62.
Li H, Khajuria C, Rangasamy M, Gandra P, Fitter M, Geng C, et al. Long dsRNA but not siRNA initiates RNAi in western corn rootworm larvae and adults. J Appl Entomol. 2015;139:432–45.
Rangasamy M, Siegfried BD. Validation of RNA interference in western corn rootworm Diabrotica virgifera virgifera LeConte (Coleoptera: Chrysomelidae) adults. Pest Manag Sci. 2012;68:587–91.
Kim HS, Murphy T, Xia J, Caragea D, Park Y, Beeman RW, Lorenzen MD, Butcher S, Manak JR, Brown SJ. BeetleBase in 2010: revisions to provide comprehensive genomic information for Tribolium castaneum. Nucleic Acids Res. 2010;38:D437–42.
TBR performed experiments, data acquisition, analysis and interpretation, statistical analysis, participated in the design of the study, and manuscript drafting. ENM performed bioinformatic experiments, contributed to data acquisition, analysis and interpretation, and manuscript drafting. HW contributed to experiments, data acquisition, analysis and interpretation, participated in the design of the study, and critical revision of the manuscript. CK contributed to data analysis and interpretation, statistical analysis and participated in the design of the study. BDS contributed to data interpretation, directed and designed the study, and critical revision of the manuscript. All authors read and approved the final manuscript.
This work was partially supported by CAPES Foundation (Ministry of Education of Brazil, Brasília—DF 70040-020, Brazil) for TBR’s scholarship.
The authors declare that they have no competing interests.
