- Research article
- Open Access
Treatment optimization of angiotensin converting enzyme inhibitors and associated factors in Ayder Comprehensive Specialized Hospital: a cross-sectional study
BMC Research Notes volume 11, Article number: 209 (2018)
Angiotensin-converting enzyme inhibitors have morbidity and mortality benefits in heart failure. Failure to optimize treatment using these medications increases hospitalizations, worsens signs and symptoms of heart failure, and reduces the overall treatment outcome. Therefore, the main purpose of this study was to assess the practice of treatment optimization of these medications and associated factors.
A hospital-based cross-sectional study was conducted on 61 ambulatory heart failure patients, recruited using a convenience sampling technique, from February 25 to May 24, 2016 at the cardiology clinic of Ayder Comprehensive Specialized Hospital. Descriptive, inferential and Kaplan–Meier ‘tolerability’ analyses were employed. All patients were taking only enalapril as part of their angiotensin converting enzyme inhibitor treatment. According to the 2013 American College of Cardiology/American Heart Association guideline, about fourth-fifth (80.3%) of the patients were tolerating to the hypotensive effect of enalapril. The dose of enalapril was timely titrated (every 2–4 weeks) and was optimized for only 11.5 and 27.8% of the patients, respectively. Considering the tolerance, timely titration, and dose optimization, only 3.3% of the overall enalapril treatment was optimized. Multivariate regression results showed that the odds of having timely titration of enalapril for patients who were taking enalapril and calcium channel blockers were almost 20 times [adjusted odds ratio (AOR) = 21.68, 95% confidence interval (CI) 1.23–383.16, p < 0.036] more compared to patients who were taking enalapril and β-blockers. A Log Rank Chi Square result showed a 19.42 magnitude of better toleration of enalapril (p < 0.001) for patients who were taking enalapril for more than 1 year compared to less than a year.
This study provides a platform for assessment of the treatment optimization practice of enalapril, which remains the pressing priority and found to be poor in the ambulatory setting, despite a better tolerability to the hypotensive effect of enalapril. We call for greater momentum of efforts by health care providers in optimizing the treatment practice to benchmark with other optimization practices.
Heart failure (HF) is a complex clinical syndrome that results from any structural or functional impairment of ventricular filling or ejection of blood . It is one of the major and progressive causes of morbidity and mortality in most developed and some developing countries. Current therapeutic strategies have been designed to counter the progression of heart failure and to improve ‘meaningful’ survival by using medications that inhibit the remodeling process . One of these strategies is to use angiotensin-converting enzyme inhibitors (ACEI) in HF patients, which is considered nowadays as one of the important and necessary steps towards an effective management of patients with HF .
The available evidence suggests that in chronic HF, high doses of ACEI are more effective than low ones. The current recommended clinical approach is to target ACEI dosing regimens to be similar to those used in the clinical trials, which demonstrated mortality and morbidity benefits. When titrated appropriately, ACEI are generally well tolerated and target doses can be achieved and maintained in the majority of patients with HF [4, 5].
Clinical practice guidelines, published by both the Agency for Health Care Policy and Research, and the American College of Cardiology Foundation/American Heart Association (ACCF/AHA), reflect the findings of these studies. According to these guidelines, every effort should be made to increase the dose of ACE inhibitors to the target doses shown in clinical trials to decrease mortality and morbidity with close monitoring when managing chronic HF [3, 6,7,8]. Moreover, studies such as the prospective evaluation by Messner Pellenc found that a daily dose of 20 mg of enalapril could be reached in a high proportion of patients with HF at good tolerability and improved outcomes . The target doses used in clinical trials were 10 mg ramipril per day, 20–40 mg enalapril per day, 150 mg captopril per day, 10–35 mg lisinopril per day or 4 mg trandolapril per day . Concerning the algorithm for HF management, we followed the same algorithm as outlined in ACCF/AHA and World Health Organization (WHO) guidelines [1, 10].
Regarding tolerability of ACEI, renal function, serum potassium, and signs and symptoms of a cough and angioedema should be assessed within 1–2 weeks of initiation of therapy and periodically thereafter [1, 5, 8, 11,12,13]. Most of HF patients (85–90%) can tolerate ACEI . However, a study done in Sweden reported that 77% of the patients experienced angioedema within the first 3 weeks after starting treatment .
A number of prospective observational studies have reported that patients with HF discharged from hospital and maintained on ‘high’ ACEI doses had improved clinical outcomes compared to those receiving low-dose therapy. The benefits include improved patients’ symptom status, low rates of death and re-hospitalization, thus incurring lower costs [14,15,16]. Lack of ACEI treatment optimization significantly affects these beneficial treatment outcomes for patients with HF . However, the practice of treatment optimization for this important class of medications is not assessed so far in Ayder Comprehensive Specialized Hospital (ACSH). This study was conducted in identifying the gaps in the implementation of optimal dosing of ACEI in the treatment of adult ambulatory HF patients in ACSH.
A hospital-based cross-sectional study was employed at the cardiac unit of ACSH, Northern Ethiopia from February 25 to May 24, 2016. This institution is a public hospital that gives inpatient and outpatient services for millions of population in Tigray region and nearby regions. Heart failure patients with severe illness are usually admitted and treated as inpatients while stable patients receive care chronically as ambulatory or outpatients. The source population was all adult ambulatory HF patients who were taking HF medications. The study population in this study was all adult ambulatory HF patients who were obtaining services at the cardiology unit of ACSH and whose treatment regimen was ACEI.

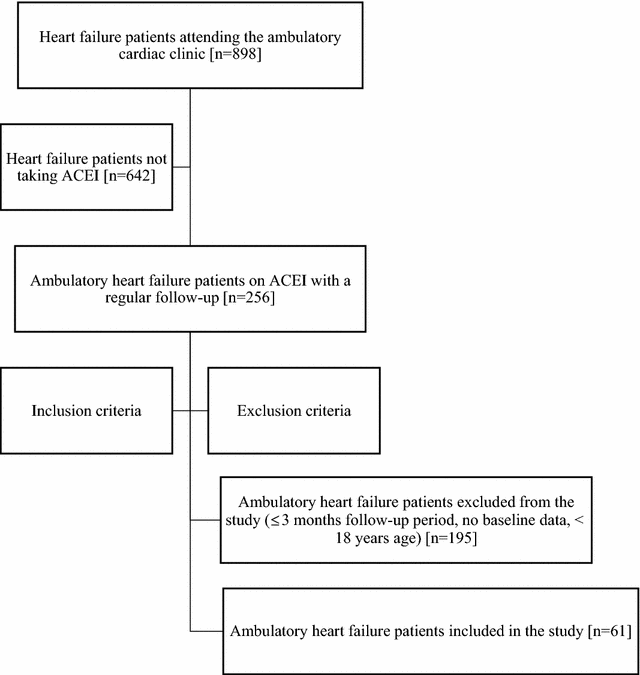

Approximately 256 ambulatory HF patients who were taking ACEI regularly visit the cardiac clinic. Considering 1.96 for the standard normal variable with a 5% level of significance, 80% power of the study, 95% confidence interval (CI), 5% margin of error and 10% contingency, the sample size was calculated to be 61. A convenient sampling technique was employed to select the samples from the study population.
Ambulatory HF patients who were taking ACEI as part of their treatment for at least 3 months, whose baseline information was clearly depicted in their medical records, who had a regular follow-up at the clinic and who were 18 years old and above were included in the study. On the other hand, ambulatory HF patients who were using ACEI for < 3 months, with no baseline data and younger than 18 years of old were excluded from the study. The overall patient selection process is summarized in Fig. 1.
Data were collected retrospectively by three trained data collectors (2 nurses and 1 pharmacist) through reviewing the patients’ medical records for a period of 3 months. The structured data abstraction tool was developed according to the 2013 ACCF/AHA and WHO guidelines recommendations [1, 10]. The data abstraction tool was pre-tested in 10% of the sample size (i.e., 6 medical records). Completeness of the collected data was supervised and monitored adequately by the investigators during the data collection process.
Data analysis was carried out using Statistical Package for Social Sciences (SPSS® Statistics) program version 21 (SPSS; Chicago, IL, USA). Descriptive statistics such as frequency, percentage, mean, and standard deviation (SD) were employed to summarize patient, clinical, and medication-related characteristics.
Logistic regression analysis was performed to relate independent variables to treatment optimization of ACEI. From the univariate analysis, those variables with p < 0.2 and clinically important factors were selected for multivariate binary logistic regression analysis. The multivariate binary logistic regression analysis was also used to assess the predictability of the independent variables for treatment optimization of ACEI and to estimate the odds ratios (OR), 95% confidence intervals (CI) and p values. A ‘tolerability’ analysis for ACEI was carried out using the Kaplan–Meier analytic method. A Log Rank (Mantel–Cox), Breslow (Generalized Wilcoxon) and Tarone–Ware tests were employed in the overall comparisons of the ‘tolerability’ curves. The association was declared significant for the aforementioned analyses at p < 0.05.
ACEI was deemed to be ‘tolerated’ if the blood pressure was greater than 80/60 mmHg, serum creatinine was less than 3 mg/dL, serum potassium was < 5.5 mEq/L and no history or current complaint of a cough or angioedema. Otherwise, the ACEI was deemed to be ‘non-tolerated’. Angioedema was defined as swelling of lips, mouth, tongue, or airway in patients receiving ACEI therapy, where no other clinical cause was identified and where there were no recurrent symptoms following cessation of the drug [1, 5].
The time interval between the dose titration was said to be ‘appropriate’ if the tolerated dose was timely titrated (every 2–4-week interval). Time for a dose titration was considered as ‘inappropriate’ if the dose was not titrated within 2–4 weeks of the time interval. A dose of ACEI was said to be ‘optimized’ when once the drug is initiated and has been titrated up by 12.5 mg three times daily for captopril, 10 mg two times daily for lisinopril, and 2.5–5 mg daily for enalapril to the higher doses according to 2013 ACCF/AHA guideline. Lastly, the overall ACEI treatment was deemed to be ‘optimized’ when the dose of ACEI was optimized with timely titration, and the patient tolerated the ACEI .
The socio-demographics and clinical characteristics of the study participants are summarized in Table 1. According to the medical records of the study patients, more than half (57.4%) of the patients were males and were dwelling in urban areas (68.9%). Besides this, about one-third (34.4%) of the patients were in the age group of 53–69 years (mean 51.77 years; SD ± 17.56 years; range 19–83 years). Forty-five percent of the study patients had evidence of hypertension as a co-morbid disease followed by diabetes mellitus (34.4%). With reference to the cause of HF, 57.4% of the documented cause of HF were rheumatic valvular heart disease, followed by hypertension (28%). Furthermore, 42.6% of the patients had HF with reduced ejection fraction. For the majority (n = 28, 62.2%) of the study participants, the ejection fraction was 50%. The evidence for classifying the ejection fraction was based on the hospital’s reference value (60 ± 10%). In view of that, patients with ejection fraction ≤ 40% were categorized as HF with reduced ejection fraction (Table 1).
The mean duration of diagnosis of HF for the patients was 1.8 years (SD ± 1.3 years; range 3 months to 6 years). According to the ACCF/AHA staging system, above fourth-fifth (83.6%) of the patients had stage “C” HF (Fig. 2). In addition to staging, the most prevalent category of NYHA class was class IV, accounted for 39.3%, followed by class III (31.1%) (Fig. 3). All of the study participants were using only enalapril as part of their ACEI treatment. The mean duration of taking this medication was 1.5 years (SD ± 1.2 years; range 3 months to 6 years; 95% CI 1.2–1.8) (Fig. 4).

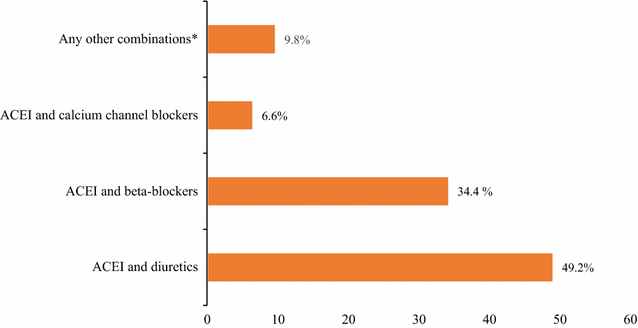

All of the study patients were using one or more other types of HF medications in addition to enalapril. The combination of the ACEI and diuretics accounted for about half (49.2%) of the prescribed medications followed by a combination of the ACEI and β-blockers (34.4%) (Fig. 5).
Treatment optimization and associated factors
Regarding the toleration using blood pressure as a monitoring parameter, about fourth-fifth (80.3%) of the study subjects were tolerating to this effect during the periods of apparent titration periods but few patients were not tolerating their medication during the third titration period. On the contrary, for the majority (88.5%) of the study subjects, their dose was not timely titrated and near three-fourth (72.1%) of the patients’ dose was not optimized during these titration periods. The majority of the patients had a timely titration of ACEI during fourth and beyond titration periods. Doses of ACEI were not optimized during the third titration period, compared to the fourth and beyond titration periods. Considering the above three factors (tolerance, timely titration, and dose) in combination, the ACEI treatment was not optimized for almost all (96.7%) of the patients (Table 2 and Fig. 6).
The results of univariate and multivariate logistic regression analysis showed that no factor was significantly associated with the toleration, dose optimization and overall treatment optimization of ACEI at p < 0.05. Moreover, the following factors that interact with heart failure were assessed for their association with tolerability of ACEI. These were: (1) cardiac events: coronary heart disease, atrial fibrillation, uncontrolled hypertension, and arrhythmia; (2) non-cardiac events: pulmonary infections, pulmonary emboli, diabetes mellitus, worsening renal function, hyperthyroidism, anemia, and pregnancy; and (3) drugs: negative inotropic medication (azithromycin, β-blockers, non-dihydropyridine calcium channel blockers, and itraconazole), direct cardiotoxics (anticancers, ethanol, and amphetamine) and drugs with sodium and water retaining properties (non-steroidal anti-inflammatory drugs, COX-2 inhibitors, glucocorticoids, and sodium-containing drugs). These factors were not found to have any statistically significant association, at the crude level, with the ACEI toleration.
On the other hand, the results of regression analysis for factors associated with timely titration are summarized in Table 3 after controlling the independent variables and incorporating those variables with p value less than 0.2 (including duration of diagnosis and types of other concomitant medications) into the multivariate logistic regression analysis. From the multivariate analysis, the odds of having timely titration of ACEI for patients who were taking ACEI and calcium channel blockers were almost twenty times (AOR = 21.68, 95% CI 1.23–383.16, p = 0.036) more compared to patients who were taking ACEI and β-blockers (Table 3).
Kaplan–Meier ‘tolerability’ analyses
The event of interest during the Kaplan–Meier (KM) ‘tolerability’ analysis method in this study was ACEI treatment toleration and the units of measurement along the x-axis were the duration of taking ACEI in months. Patients who were taking ACEI for more than 1 year were tolerating their medication in a better way than patients who were taking ACEI for less than a year. The test of equality of survival distributions for the duration of ACEI treatment showed the Chi Square results of 19.42, 21.78 and 21.47 for the Log Rank (Mantel–Cox) (p < 0.001), Breslow (Generalized Wilcoxon) (p < 0.001) and Tarone–Ware (p < 0.001) respectively (Fig. 7).
A comparison of KM survival curves for the types of HF medications revealed that none of the combinations of HF medications provide any effect on the toleration of the medications by the study participants. The test of equality of survival distributions for the different types of heart failure medications showed the Chi Square results of 1.204, 0.878 and 0.933 for the Log Rank (Mantel–Cox) (p = 0.752), Breslow (Generalized Wilcoxon) (p = 0.831) and Tarone–Ware (p = 0.817) respectively (Fig. 8).
The study assessed treatment optimization practice of ACEI among ambulatory HF patients at the cardiac clinic of ACSH. According to 2013 ACCF/AHA recommendation, the majority (80.3%) of the study patients were tolerating the ACEI provided blood pressure as a monitoring parameter. The probable explanation for this finding might be supported by the evidence that most of the patients were maintained on low doses for a long period of time. Moreover, there might be poor patients’ awareness on reporting the potential side effects associated with ACEI. This finding (80.3% tolerance to ACEI) was congruent with studies done in the USA that reported tolerance rate of 80%  and Australia that reported 75% rate . This similarity could be related to the maintenance of patients on a similar dose without up-titration for a long duration of the period. Another possible explanation could also be the similarity of black patients and the matched white patients in socio-demographic and clinical characteristics .
Concerning timely titration of ACEI, the majority of patients’ medication was not timely titrated (that is, every 2–4 weeks) as per the recommendations. The absence of concordance on the selection of appropriate appointment date between the patients and physicians could be the possible explanation for this finding. Likewise, the medications for patients with longer duration of diagnosis was not timely titrated as substantiated by the finding that patients whose HF diagnosed for the duration of fewer than 1.6 years had 19.4% of timely titration compared to 0% timely titration for patients with 3.26 and above years’ duration. This might be associated with the resistance of physicians on consideration of the essentiality of upward titration of ACEI and might be due to the high ratio of patients per healthcare professional which could hinder the quality of medical as well as pharmaceutical care secondary to the absence of clinical pharmacy specialist at the cardiology clinic.
Besides the above findings, the doses of ACEI were not optimized for the majority of the study participants (72.9%). The patients in this study were taking a low dose of ACEI for longer periods of time without proper titration. This poor dose optimization practice corresponded with a study done in England that reported 75% . The probable reason for this finding might be attributed to the poor quality of health care due to less team-work and lower involvement of clinical pharmacists in the hospital setting and the absence of updated hospital guidelines.
Moreover, the reason why patients’ doses were not optimized were allied to fear of adverse effects and the physicians claimed that patients becoming intolerant to higher doses. Despite the differences in the definition of ‘optimal’ doses of ACEI in different clinical settings, a number of surveys suggest that clinicians often prefer the use of low doses of ACEI, and the perception that low doses are as effective as high ones are quite prevalent. In addition, clinicians rarely titrate ACEI dose according to blood pressure .
The overall treatment in the present finding was not optimized because the dose was not optimized and timely titrated in most of the patients, and some of the patients were not tolerating the medications. This leads to the overall poor treatment optimization practice in the hospital despite the obvious favorable effects of ACEI therapy using a cascaded higher dose. Tailoring therapy to achieve a desired neurohormonal response and improve therapeutic outcomes have been demonstrated . Unless optimally titrated, exacerbation of heart failure occurs commonly in these patients and contribute to the compromised quality of life for these patients . There are multitudes of reasons given for why patients were either not on ACEI or at low doses of them objecting the optimum titration. In summary, the potential obstacles may be attributable to fear of adverse effects , patients’ inconvenience to appointment dates selected; high patient load with small number of physicians; absence of physicians’ team-work or less team-work spirit with clinical pharmacists and other health care providers; less access and awareness to the up-to-date guidelines by the clinicians; and physicians’ low knowledge, attitude and practice towards ACEI treatment optimization.
The multivariate binary logistic regression analysis showed that the combination of medications was only found to be significantly associated with timely titration. Accordingly, patients who were taking ACEI and calcium channel blockers were more likely to have timely titration compared to patients who were taking ACEI and β-blockers. This might be related to side effects of calcium channel blockers, which are common and easily identifiable by the patients. Therefore, the patients preferred to report these side effects and likely to have a short duration of appointment than patients who were taking β-blockers. On the other hand, most of the socio-demographics and clinical characteristics of the study participants were not found to be significantly associated with timely titration, dose optimization, and overall treatment optimization.
The Kaplan–Meier (KM) ‘tolerability’ analysis method showed that patients who were taking ACEI for more than 1 year were tolerating their medication in a better way than patients who were taking ACEI for less than a year. The majority of the side effects of ACEI is seen in the early phases of treatment and then wanes with the progression of time.
There was a certain limitation in this study. The cross-sectional nature of this study did not allow follow-up of the study participants, which could have provided a better design for identifying the factors associated with the treatment optimization.
This study provides a platform for assessment of the treatment optimization practice of ACEI (enalapril), which remains the pressing priority and found to be poor in the ambulatory setting, despite a better tolerability to the hypotensive effect of enalapril. The combination of enalapril and calcium channel blockers is found to contribute positively to timely titration. Accordingly, we call for greater momentum of efforts by health care providers in optimizing the treatment practice to benchmark with other optimization practices in order to improve the heart failure management.
American College of Cardiology Foundation/American Heart Association
angiotensin converting enzyme inhibitors
Ayder Comprehensive Specialized Hospital
adjusted odds ratio
calcium channel blockers
crude odds ratio
New York Heart Association
World Health Organization
Yancy CW, Jessup M, Bozkurt B, Butler J, Casey DE Jr, Drazner MH, et al. 2013 ACCF/AHA guideline for the management of heart failure: a report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines. J Am Coll Cardiol. 2013;62:e147–239.
Hobbs FDR. Does current prescribing provide optimal treatment for heart failure patients? BJH. 2000;50:735–42.
Sleiman O, Ghanem W, Murin J. Angiotensin-converting enzyme inhibitors: do we utilize our knowledge in heart failure patients? J Clin Basic Cardiol. 2001;4:279–83.
Lonn E. Dose response of ACE inhibitors: implications of the SECURE trial. Curr Control Trials Cardiovasc Med. 2001;2:155–9.
Massie BM, Armstrong PW, Cleland JG, Horowitz JD, Packer M, Poole-Wilson PA, et al. Toleration of high doses of angiotensin-converting enzyme inhibitors in patients with chronic heart failure: results from the ATLAS trial. The Assessment of Treatment with Lisinopril and Survival. Arch Intern Med. 2001;161:165–71.
Konstam MA, Dracup K, Baker DW, Bottorff MB, Brooks NH, Darcey RA, et al. Heart failure: evaluation and care of patients with left ventricular systolic dysfunction. J Card Fail. 1995;1:183–7.
Packer M, Cohn JN, Abraham WT, Colucci WS, Fowler MB, Greenberg BH, et al. Consensus recommendations for the management of chronic heart failure. Am J Cardiol. 1999;83:1A–38A.
Jessup M, Abraham WT, Casey DE, Feldman AM, Francis GS, Ganiats TD, et al. 2009 focused update: ACCF/AHA 2005 guidelines for the diagnosis and management of heart failure in adults. J Am Coll Cardiol. 2009;53:1343–82.
Messner PP, Rudnicki A, Leclercq F, Grolleau R. Enalapril in the treatment of mild-to-moderate heart failure in general medical practice: a prospective and multicentre study concerning 17,546 patients. Acta Cardiol. 1995;50:187–201.
McMurray J. Concise guide to the management of heart failure. Am J Geriatr Cardiol. 1996;5:13–30.
Gibbs CR, Lip GYH, Beevers DG. Angioedema due to ACE inhibitors: increased risk in patients of African origin. Br J Clin Pharmacol. 1999;48:861–5.
Ray JG, Vermeulen MJ, Koren G. Taking ACE inhibitors during early pregnancy: is it safe? Can Fam Physician. 2007;53:1439–40.
Packer P, Poole-Wilson PA, Armstrong PW, Cleland JGF, Horowitz JD, Massie BM, et al. Comparative effects of low and high doses of the angiotensin-converting enzyme inhibitor, lisinopril, on morbidity and mortality in chronic heart failure. Cerculation. 1999;100:2312–8.
Krum H. National Heart Foundation of Australia. Guidelines for management of patients with chronic heart failure in Australia. Med J Aust. 2001;174:459–66.
Luzier AB, Forrest A, Feuerstein SG, Schemtag JJ, Izzo JL. Containment of heart failure hospitalizations and cost by angiotensin-converting enzyme inhibitor dosage optimization. Am J Cardiol. 2000;86:519–23.
Chen YT, Wang Y, Radford MJ, Krumholz HM. Angiotensin-converting enzyme inhibitor dosages in elderly patients with heart failure. Am Heart J. 2001;141:410–7.
Sweileh WM, Sawalha AF, Rinno TM, Zyoud SH, Al-Jabi SW. Optimal dosing of angiotensin-converting enzyme inhibitors in patients with chronic heart failure: a cross-sectional study in Palestine. Ann Saudi Med. 2009;29:119–22.
Exner DV, Dries DL, Domanski MJ, Cohn JN. Lesser response to angiotensin converting enzyme inhibitor therapy in black as compared with white patients with left ventricular dysfunction. N Engl J Med. 2001;344:1351–7.
Bangalore S, Kumar S, Messerli FH. Angiotensin-converting enzyme inhibitor associated cough: deceptive information from the Physicians’ Desk Reference. Am J Med. 2010;123:1016–30.
Luzier AB. Optimization of angiotensin-converting enzyme inhibitors in a heart failure program. Am J Cardiol. 2000;86:519–23.
Israel G, Shani R, Tanya AL. Use of angiotensin-converting enzyme inhibitors and angiotensin receptor blockers in high-risk clinical and ethnic groups with diabetes. IMAJ. 2008;53:214–8.
Troughton RW, Frampton CM, Yandle TG, Espiner EA, Nicholls MG, Richards AM. Treatment of heart failure guided by plasma aminoterminal brain natriuretic peptide (n-BNP) concentrations. Lancet. 2000;355:1126–30.
The European Society of Cardiology. Optimization of ACE inhibitor therapy in heart failure. Eur Heart J. 2002;23:1323–5.
Packer M, Poole-Wilson PA, Armstrong PW, Cleland JG, Horowitz JD, Massie BM, et al. ATLAS trial. Circulation. 1999;100:2312–8.
TMA and TT involved in the conception and design of the study, developed data collection tools, supervised data collection, analyzed data and wrote the manuscript. SW, MK, HBM, and GT involved in writing and editing of the manuscript. All authors read and approved the final manuscript.
The authors are indebted to all participants of the study.
The authors declare that they have no competing interests.
Availability of data and materials
The datasets supporting the conclusions of the study are included in the article. Any additional data will be available on request.
Consent to publish
Ethics approval and consent to participate
The study was approved by the Institutional Review Board of Collage of Health Sciences, Mekelle University. A letter of support was obtained from the medical director’s office of the hospital. All results of this research were based on the use of secondary data and the data collection was performed retrospectively. Therefore, obtaining informed written consent form from the study participants was not applicable in this study but the study was conducted in accordance with the ethical standards of the institutional and national research committee. The study also adhered to the declarations of Helsinki.
The study was not supported by any funding agent.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Atey, T.M., Teklay, T., Asgedom, S.W. et al. Treatment optimization of angiotensin converting enzyme inhibitors and associated factors in Ayder Comprehensive Specialized Hospital: a cross-sectional study. BMC Res Notes 11, 209 (2018). https://doi.org/10.1186/s13104-017-2820-5
- Treatment optimization
- Angiotensin converting enzyme inhibitors
- Heart failure
