Neuroprotection by chitosan nanoparticles in oxidative stress-mediated injury
BMC Research Notes volume 11, Article number: 49 (2018)
Oxidative stress is a critical component of nervous system secondary injury. Oxidative stress produces toxic chemical byproducts including reactive aldehydes that traverse intact membranes and attack neighboring healthy cells. This secondary damage often leads to further patho-biochemical cascades that exacerbate the original insult. In this work, we investigate the therapeutic effects of chitosan nanoparticles on cell cultures exposed to oxidative stress.
We found chitosan nanoparticles can rescue BV-2 glial cells from death, but only for cells undergoing necrosis. Necrosis occurred when cultures were challenged with high concentrations of H2O2 (> 110 μM) whereas a slow and progressive loss of cultures was observed in more dilute (50–100 μM) peroxide applications. In the latter case, the primary mode of cell death was apoptosis. These studies revealed that while rescue of H2O2 challenged cultures was achieved for necrotic cell death, no such sparing was observed in apoptotic cells. Based on the current and cumulative data regarding the membrane fusogenic properties of chitosan, we conclude that chitosan neuroprotection arises from its membrane sealing effects. Consistent with this hypothesis is the observation that apoptotic cells did not exhibit early stage membrane damage. These in vitro results elucidate mechanisms by which membrane fusogens may provide therapeutic benefit.
Oxidative stress caused by reactive oxygen species (ROS) plays a key role in several neurodegenerative diseases as well as secondary injury in the central nervous system. ROS are highly toxic and can damage many biological molecules, including lipids, proteins, and/or nucleic acids. ROS can react with cell membrane lipids, leading to the initiation of lipid peroxidation (LPO) and increased membrane permeability [1, 2]. LPO can in turn, generate additional toxic species such as aldehydes (4-hydroxynonenal and acrolein).
The un-regulated generation of H2O2 is a well-known source of oxidative stress. H2O2 is the intermediate product in the conversion of O ·−2 into H2O in the electron transport chain during mitochondria oxidative phosphorylation. Disruption of this equilibrium via cell injury can cause activated oxygen byproducts (O ·−2 and H2O2) and overwhelm endogenous antioxidants such as superoxide dismutase, catalase, glutathione peroxidase, vitamin E and glutathione .
We previously showed chitosan based nanoparticles synthesized with and without a drug rescued PC-12 cells in an acrolein cell death model [4, 5]. The putative mode of cell preservation by chitosan was restoration of cell membrane integrity. Recovery of conduction was also demonstrated with chitosan in guinea pigs subjected to spinal crush . In this work, we further investigate the neuroprotective properties of chitosan nanoparticles on BV-2 rat microglia cells challenged by H2O2. Similar to prior acrolein studies, this ROS injury model aims to mimic the biochemical mechanisms associated with CNS secondary injury.
The procedures and analysis of chitosan nanoparticles have been detailed previously . Briefly, ionic gelation between chitosan polymer (200 kDa) and dextran sulfate polymer (DS) or sodium tripolyphosphate (TPP) polyanion was used. Two types of chitosan nanoparticles (chitosan-DS nanoparticles (~ 10 kDa) and chitosan-TPP nanoparticles) were synthesized. For technical reasons chitosan-DS nanoparticles (Chi-DSNPs) were employed in this study. Briefly, 0.1% chitosan was dissolved in 1% acetic acid and mixed for 12–18 h. 0.1% DS was prepared in DI water and filtered through 0.45 μm syringe filters. The DS solution was added drop-wise to the chitosan solution with continuous stirring for 1 h. The volume ratios for Chi-DSNPs were as follows: 5:3, 5:5, 5:8.5. During the DS-chitosan formation, the solution clouded when the volume ratio was above 5:3, indicating presence of nanoparticles. Following synthesis, the Chi-DSNPs were purified in 300 kDa dialysis tubing placed in DI water with stirring. The nanoparticle solutions were kept in 4 °C before use.
The morphology of ChiNPs were imaged via negative staining TEM. Briefly, one drop of Chi-NP solution was placed on a carbon grid and allowed to settle for 2 min. The grid was swished through a 2% uranyl acetate stain and the excess liquid removed. Samples were mounted and imaged using a Phillips CM-100 TEM operated at 100 kV with a 200 μm condenser aperture and 70 μm objective aperture.
Chi-DSNPS on BV-2 proliferation and viability
BV-2 mouse microglia obtained via Dr. Jau-Shyong Hong and Mrs. Belinda C. Wilson of NIH neuropharmacology group were maintained in DMEM supplemented with 0.044 M sodium bicarbonate, 10% fetal bovine serum and 100 U/ml penicillin and 100 μg/ml streptomycin. The cells were cultured in a 5% CO2 and 95% O2 incubator at 37 °C. 0.25 × 105 cells using a 75 cm2 flask. For proliferation measurements in response to Chi-DSNPs, BV-2 cells were seeded at a density of 1 × 104 cells/well in a 96-well plate. After overnight incubation, the cell medium was replaced with diluted NP solutions at a concentration of 0, 0.1, 0.2, 0.5 mg/ml, at a volume of 100 μl. For H2O2 challenge, the cell medium was replaced with H2O2 at 0, 50, 100, 200, and 300 μM for 20 h. In these experiments, cell proliferation was measured by using a WST-assay (Abcam) per manufacturer’s protocol and wells read with a plate reader at 450 nm. Four experiments were conducted in quadruplicate.
To measure BV-2 post-peroxide exposure viability, cells were seeded at 1 × 105/well in a 12-well plate. After overnight incubation, the medium was replaced with a buffered H2O2 solution at 0 (control), 50, 100, and 5500 μM. Cells were imaged using an environmentally controlled Olympus IX81 microscope and proliferation tracked every 30 min for 20 h.
Mode of cell death
BV-2 cells were seeded at 1 × 105/well in 12 well plates. Cells were exposed to H2O2 at 0 (control), 50, 100, and 5500 μM to induce cell death. The adherent cells were trypsinized gently and washed with phosphate buffer solution. Cells were incubated with 5 μl annexin V-FITC (Abcam) and 5 μl (50 mg/ml) of propidium iodide (Sigma) for 5 min at 25 °C. Cells were centrifuged gently and re-suspend in 200 μl binding buffer. 100 μl cell suspensions were placed on a glass slide, coverslip mounted and imaged using an Olympus IX81 at incubation times of 0 and 4 h for H2O2 (5500 μM) and at time 0 and 20 h for H2O2 (0, 50, 100 μM) with a dual filter set for FITC/PI.
Chi-DSNPs and neuroprotection
To assess the neuroprotective effects Chi-DSNPs, a concentration of 5500 μM H2O2 was chosen to induce BV-2 cell death. Here, BV-2 cells were seeded at a density of 0.5 × 105 cells/well in a 24-well plate and cultured overnight. Afterwards, 10 μl of Chi-DSNPs at 1 mg/ml was administered at 0 and 15 min after H2O2 addition. Cell viability was measured by Trypan blue. BV-2 cells were also pre-incubated with 0.2 mg/ml Chi-DSNPs (pre-filtered with 1.2 or 5 μm syringe filter) for 4 h and subsequently exposed to 50 μM H2O2 for an additional 20 h. No treatment controls were BV-2 cells not exposed to H2O2, whereas injured controls were cells exposed to H2O2 but no nanoparticles were applied. Following 20 h culture, the WST-1 assay was used to quantify cell proliferation.
All data were represented as mean ± standard deviation. Statistical analysis was conducted using one-way ANOVA and a Tukey–Kramer post hoc test. A P value ≤ 0.05 was considered statistically significant.
The bare Chi-NPs appeared as dark clustered spheres during TEM processing (Additional file 1: Figure S1). Larger globular CNPs were about 100 nm in diameter, while the majority of the clusters were 50 nm or smaller. Storage condition tests showed that this globular shape was maintained even after 2 weeks of air drying (data not shown). Dose–response characteristics of BV-2 cells exposed to Chi-DSNPs was assessed with WST-1. Results showed cell proliferation within 20 h (normalized to 0 mg/ml) was not affected significantly by Chi-DSNPS up to 0.5 mg/ml (P > 0.05, Additional file 1: Figure S1).
Time and dose dependent inhibition of cell proliferation induced by H2O2
H2O2 reduced BV-2 cell proliferation within the initial 20 h when assessed with WST-1 (Fig. 1). At H2O2 concentration > 200 μM, no difference was detected with WST assay as death saturated the populations. Cells at H2O2 challenge time points of 0, 2.5 h, and 18 h were selected to evaluate changes to cell morphology. In the uninjured (0 μM H2O2) control groups, (Fig. 1A–C), cells appeared adherent with elongated processes and normal proliferation. In 50 μM H2O2 group (D–F), cell morphology was distorted after only 4 h. In (F), multiple dead cells formed clumps and altogether appeared as non-viable cultures. The surface of these cells was very irregular with globular inclusions. In the 5500 μM hydrogen peroxide group (G–I), cells started retracting their processes after only 1 h incubation. Cell blebs were formed and the swelling of the cytoplasm was observed (data not shown). These cells later darkened, indicating near or actual cell death. Multiple small bright spots were detected in single dead cells, suggesting breaches in the cell membranes (I).
Mode of cell death was determined PI and annexin-FITC stains. Photomicrographs Fig. 2d–f show BV-2 cells treated with 5500 μM H2O2 possessed bright red (PI) nuclei and small evidence of FITC on their membranes vs control. We did not detect any cells stained only with FITC. Interestingly, the treatment of 50 μM (b) and 100 μM (c) H2O2 resulted in some staining with annexin-V/PI, but also led to cells stained only with FITC. This suggests that a long exposure to a low H2O2 dose induced mostly apoptotic cell death, with only minor necrosis.
Chi-DSNPs on BV-2 viability after H2O2 exposure

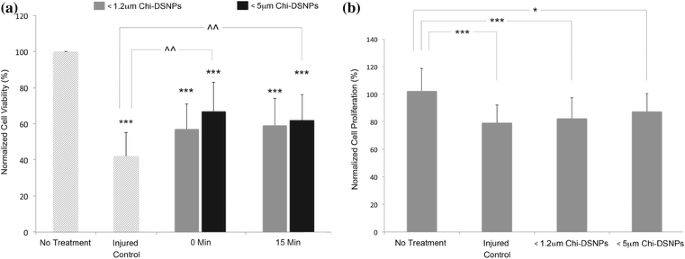

BV-2 cell viability after the administration of Chi-DSNPs at 0 and 15 min after exposure to 5500 μM H2O2 was measured by Trypan blue. Results (Fig. 3) showed at a 2.5 h exposure time, 5500 μM H2O2 induced almost 60% cell death vs untreated control groups (P < 0.001) whereas 5 μm-filtered Chi-DSNPs preserved cells by 20% (P < 0.01). No difference in the timing of CHI-DSNPs (0 or 15 min) application was detected. Additionally, a 30 min delayed administration of Chi-DSNPs did not provide further beneficial effect (data not shown). At low dose, WST-1 was used to determine the protective effects of Chi-DSNPs on H2O2 challenge (Fig. 3b). Findings show a 20% decrease in cell proliferation after a 20 h administration of 50 μM H2O2 (P > 0.05). Pre-treating the cells with either 1.2 or 5 μm filtered Chi-DSNPs at 0.2 mg/ml for 4 h prior to H2O2 challenge did not statistically improve cell proliferation.
Chitosan is a commonly used polymer in biomaterials research due to its good biodegradability, biocompatibility and accessibility for surface modification [6, 7]. Previously, we showed chitosan nanoparticles exhibited neuroprotective effects in an acrolein-challenged PC-12 cell model . In this work, we extend the line of investigation to BV-2 cells, an immortalized rat microglial line that emulates the characteristics of primary microglia, displaying similar inflammatory response and phagocytic capacity . H2O2 was used as the challenge molecule since it is a common oxidative stressor for modeling many neurodegenerative diseases. For instance, Liu et al.  reported a significant elevation of intracellular level of H2O2 30 min after a weight drop induced SCI. These high levels of H2O2 were maintained for over 11 h. H2O2 was suggested to arise from O ·−2 . The post-injury activation and sustained increase of H2O2 indicate that it was not just an immediate response to SCI, and implicate H2O2 in secondary injury processes associated with SCI .
To mimic the acute release of H2O2 post SCI injury, we first constructed the H2O2 toxicity profile with BV-2 cells at exposure ranges estimated in vivo or in other experimental preparations [10,11,12]. The experimental results show short term exposure to H2O2 (< 50 μM) suppressed cell proliferation. Further assessment via morphological analysis and with annexin-V/PI staining (reviewed in ) highlight differences in mode of cell death. Acute exposure to high peroxide levels (5500 μM) induced cell membrane damage and rapid necrosis in less than 2.5 h whereas low levels of peroxide caused mostly apoptosis, which was evident in the annexin V staining. This data is not unexpected, and similar to other instances of ROS-SCI induced cell death, which is usually a combination of necrosis and apoptosis [3, 13,14,15]. Administration of chitosan nanoparticles showed chitosan nanoparticles protected microglia cells challenged with 5500 μM hydrogen peroxide (Fig. 3) for 15 min. However, no improvement in cell proliferation was observed between control and the chitosan nanoparticle group was found when BV-2 cells were pre-treated with nanoparticles and subsequently exposed to 50 μM hydrogen peroxide for 20 h. The chitosan nanoparticles themselves were well tolerated by the BV-2 cells based on proliferation assays.
The putative neuroprotective mechanism for chitosan is sealing of damaged cell membranes in a manner similar to fusogens such as polyethylene glycol [6, 16]. Therefore, it is consistent to expect necrotic cells to be sensitive to chitosan rescue. In contrast, low dosages of peroxide (50 μM) caused cellular apoptosis—a process that is biochemically driven, primarily irreversible and does not involve membrane damage at the onset. This was confirmed both morphologically and via annexin-V staining. For apoptotic cells, chitosan NPs had no therapeutic impact. While some studies also report anti-oxidative properties of chitosan, especially if pre-incubated with cells, such investigations are impractical outside of in vitro cultures and may not reveal useful insights into disease treatment [17, 18]. Again, our current findings also suggest pre-treatment with chitosan NPs does not have a meaningful effect on low-dose H2O2 challenge. Thus, we conclude that neuroprotection by chitosan nanoparticles is largely due to a physical sealing of cell membrane breaches, an observation that has been corroborated by our prior work in chitosan, poloxamers, poloxamines, and PEG [3, 4, 6, 19,20,21,22,23,24]. Due to the versatility of chitosan nanoparticles as potential drug delivery reservoirs/vehicles, these preliminary results offer support for further therapeutic investigations.
This work was conducted with cell cultures and it is unknown if the results are applicable in vivo or if there may be longer-term benefits from nanoparticle administration.
reactive oxygen species
Pryor WA. Free radicals in biology. Free radicals in biology. Cambridge: Academic Press; 1977.
Ohnishi ST, Ohnishi T. Cellular membrane: a key to disease processes. Membrane linked diseases. London: Taylor & Francis; 1992.
Borgens RB, Liu-Snyder P. Understanding secondary injury. Q Rev Biol. 2012;87(2):89–127.
Chen B, Zuberi M, Borgens RB, Cho Y. Affinity for, and localization of, PEG-functionalized silica nanoparticles to sites of damage in an ex vivo spinal cord injury model. J Biol Eng. 2012;6(1):18. https://doi.org/10.1186/1754-1611-6-18.
Chen B, Bohnert D, Borgens RB, Cho Y. Pushing the science forward: chitosan nanoparticles and functional repair of CNS tissue after spinal cord injury. J Biol Eng. 2013;7(1):15. https://doi.org/10.1186/1754-1611-7-15.
Cho Y, Borgens RB. Polymer and nano-technology applications for repair and reconstruction of the central nervous system. Exp Neurol. 2012;233(1):126–44. https://doi.org/10.1016/j.expneurol.2011.09.028.
Cho Y, Shi R, Borgens RB. Chitosan nanoparticle-based neuronal membrane sealing and neuroprotection following acrolein-induced cell injury. J Biol Eng. 2010;4(1):2.
Henn A, Lund S, Hedtjarn M, Schrattenholz A, Porzgen P, Leist M. The suitability of BV2 cells as alternative model system for primary microglia cultures or for animal experiments examining brain inflammation. Altex. 2009;26(2):83–94.
Liu D, Liu J, Wen J. Elevation of hydrogen peroxide after spinal cord injury detected by using the Fenton reaction. Free Radic Biol Med. 1999;27(3–4):478–82.
Liu D, Yang R, Yan X, McAdoo DJ. Hydroxyl radicals generated in vivo kill neurons in the rat spinal cord: electrophysiological, histological, and neurochemical results. J Neurochem. 1994;62(1):37–44. https://doi.org/10.1046/j.1471-4159.1994.62010037.x.
Zhang JX, Wang R, Xi J, Shen L, Zhu AY, Qi Q, et al. Morroniside protects SK-N-SH human neuroblastoma cells against H2O2-induced damage. Int J Mol Med. 2017;39(3):603–12. https://doi.org/10.3892/ijmm.2017.2882.
Liu D, Bao F. Hydrogen peroxide administered into the rat spinal cord at the level elevated by contusion spinal cord injury oxidizes proteins, DNA, and membrane phospholipids, and induces cell death: attenuation by a metalloporphyrin. Neuroscience. 2015;285:81–96. https://doi.org/10.1016/j.neuroscience.2014.10.063.
Fragoso G, Martínez-Bermúdez AK, Liu H-N, Khorchid A, Chemtob S, Mushynski WE, et al. Developmental differences in H2O2-induced oligodendrocyte cell death: role of glutathione, mitogen-activated protein kinases and caspase 3. J Neurochem. 2004;90(2):392–404. https://doi.org/10.1111/j.1471-4159.2004.02488.x.
Bao F, Liu D. Hydroxyl radicals generated in the rat spinal cord at the level produced by impact injury induce cell death by necrosis and apoptosis: protection by a metalloporphyrin. Neuroscience. 2004;126(2):285–95. https://doi.org/10.1016/j.neuroscience.2004.03.054.
Crowe MJ, Bresnahan JC, Shuman SL, Masters JN, Beattie MS. Apoptosis and delayed degeneration after spinal cord injury in rats and monkeys. Nat Med. 1997;3(1):73–6.
Borgens RB, Bohnert D. Rapid recovery from spinal cord injury following subcutaneously administered polyethylene glycol. J Neurosci Res. 2001;66:1179–86.
Liu H-T, Li W-M, Xu G, Li X-Y, Bai X-F, Wei P, et al. Chitosan oligosaccharides attenuate hydrogen peroxide-induced stress injury in human umbilical vein endothelial cells. Pharmacol Res. 2009;59(3):167–75. https://doi.org/10.1016/j.phrs.2008.12.001.
Mendis E, Kim M-M, Rajapakse N, Kim S-K. An in vitro cellular analysis of the radical scavenging efficacy of chitooligosaccharides. Life Sci. 2007;80(23):2118–27.
Cho Y, Shi R, Borgens RB. Chitosan produces potent neuroprotection and physiological recovery following traumatic spinal cord injury. J Exp Biol. 2010;213(9):1513–20. https://doi.org/10.1242/jeb.035162.
Borgens RB, Shi R. Immediate recovery from spinal cord injury through molecular repair of nerve membranes with polyethylene glycol. FASEB J. 2000;14(1):27–35.
Borgens RB. Restoring function to the injured human spinal cord. Advances in anatomy, embryology and cell biology. Berlin: Springer; 2003.
Koob AO, Borgens RB. Polyethylene glycol treatment after traumatic brain injury reduces beta-amyloid precursor protein accumulation in degenerating axons. J Neurosci Res. 2006;83(8):1558–63.
Koob AO, Colby JM, Borgens RB. Behavioral recovery from traumatic brain injury after membrane reconstruction using polyethylene glycol. J Biol Eng. 2008;2(1):9. https://doi.org/10.1186/1754-1611-2-9.
Koob AO, Duerstock BS, Babbs CF, Sun Y, Borgens RB. Intravenous polyethylene glycol inhibits the loss of cerebral cells after brain injury. J Neurotrauma. 2005;22(10):1092–111.
BC and JL drafted the manuscript and analyzed the data. BC designed the experiments. BC performed the experiments. RBB is the Principle Investigator and Director of the CPR and is responsible for all elements of the research. All authors read and approved the final manuscript.
We are grateful for the donation of the BV-2 cells by Dr. Jau-Shyong (John) Hong and Mrs. Belinda C. Wilson (NIH, neuropharmacology group). We appreciate the excellent illustrations and graphics by Michel Schweinsberg, and the administrative assistance of Jennifer Danaher for manuscript preparation.
The authors declare they have no competing interests. There is no competing interests of any sort in the reporting of these data relative to any author.
Availability of data and materials
All data generated or analyzed during this study are included in this published article.
Consent to publish
Ethics approval and consent to participate
This research was supported by the General Funds of the Center for Paralysis Research (State of Indiana HB 1440), and a generous endowment from Mrs. Mari Hulman George.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file 1.
Chitosan nanoparticles. Transmission electron micrographs of chitosan nanoparticles. Most particles were 100 nm or less in diameter. Corresponding table shows Chi-DSNPs did not significantly inhibit cell proliferation after 20 h incubation at different concentrations (0, 0.1, 0.2, 0.5 mg/ml).
