Mutation analysis of BCR-ABL1 kinase domain in chronic myeloid leukemia patients with tyrosine kinase inhibitors resistance: a Malaysian cohort study



Mutational analysis of BCR::ABL1 kinase domain (KD) is a crucial component of clinical decision algorithms for chronic myeloid leukemia (CML) patients with failure or warning responses to tyrosine kinase inhibitor (TKI) therapy. This study aimed to detect BCR::ABL1 KD mutations in CML patients with treatment resistance and assess the concordance between NGS (next generation sequencing) and Sanger sequencing (SS) in detecting these mutations.


In total, 12 different BCR::ABL1 KD mutations were identified by SS in 22.6% (19/84) of patients who were resistant to TKI treatment. Interestingly, NGS analysis of the same patient group revealed an additional four different BCR::ABL1 KD mutations in 27.4% (23/84) of patients. These mutations are M244V, A344V, E355A, and E459K with variant read frequency below 15%. No mutation was detected in 18 patients with optimal response to TKI therapy. Resistance to TKIs is associated with the acquisition of additional mutations in BCR::ABL1 KD after treatment with TKIs. Additionally, the use of NGS is advised for accurately determining the mutation status of BCR::ABL1 KD, particularly in cases where the allele frequency is low, and for identifying mutations across multiple exons simultaneously. Therefore, the utilization of NGS as a diagnostic platform for this test is very promising to guide therapeutic decision-making.

Peer Review reports


Chronic myeloid leukemia (CML) is a clonal myeloproliferative neoplasm characterized by the presence of the Philadelphia (Ph) chromosome derived from a reciprocal translocation between chromosome 9 and 22 (t(9;22)(q34;q11) to produce BCR::ABL1 oncogene [1, 2]. Imatinib mesylate (IM) was the first BCR::ABL1 tyrosine kinase inhibitor (TKI) approved as first-line therapy for CML due to its superior result in terms of response rates, progression-free and overall survival compared with the previous treatment options [3]. Despite the remarkable achievement of TKI therapy, 20–30% of patients developed a primary or secondary resistance to treatment during the disease course [4]. The most frequently described mechanism associated with resistance is the occurrence of point mutations in the BCR::ABL1 gene [5,6,7,8,9]. Therefore, after the emergence of resistance and factors such as low compliance and inadequate dosing are excluded, BCR::ABL1 KD mutation testing is indicated as per the recommendations of both ELN (European LeukemiaNet) and NCCN (National Comprehensive Cancer Network) [10,11,12,13].

Sanger sequencing (SS) is the recommended method for detecting BCR::ABL1 KD mutation because of its high efficiency and accuracy [14]. However, the analytic sensitivity of this method is limited, with the detection of 15–20% mutations in the wild-type background [13, 15]. Hence, there is a need to explore other methods such as NGS (next generation sequencing), which offer advantages in sensitivity, throughput and accuracy to determine BCR::ABL1 KD mutations. This study aimed to detect BCR::ABL1 KD mutations in CML patients with treatment resistance and assess the concordance between NGS and SS in detecting these mutations.


Participants and setting

This cross-sectional study was conducted on samples from CML patients with TKI resistance and those exhibiting optimal responses to TKI treatment. This study included samples from CML patients who received treatment with either imatinib or a second-generation TKI such as nilotinib or dasatinib. Samples from patients with Ph-positive (Ph+) acute lymphoblastic leukemia (ALL), patients with atypical CML and those on non-TKI therapy were excluded from this study.

The response to TKI therapy is defined according to European LeukemiaNet guidelines [11]. Patients with TKI resistance or treatment failure were those who failed to achieve a complete hematological response (CHR), complete cytogenetic response (CCR) and major molecular response (MMR) during treatment. Optimal responders were those who attained MMR BCR::ABL1 ≤ 1% and ≤ 0.1% at 6 and 12 months of TKI therapy, respectively. CHR was characterized by the normalization of peripheral blood counts, and the disappearance of palpable splenomegaly. CCR indicated the absence of Ph + cells in the karyotype. MMR or MR3 was defined as a BCR::ABL1 IS (International Scale) transcript level ≤ 0.1%. MR4 and MR4.5 were defined as BCR::ABL1 IS ≤ 0.01% and ≤ 0.0032% respectively.

Samples from the TKI-resistant group were identified from those received by the Diagnostic Laboratory Haematology at Institute for Medical Research (IMR), National Institute of Health (NIH) from January 2017 to December 2020. All samples in this group had previously undergone Sanger sequencing at the Diagnostic Laboratory Haematology, which was the referral laboratory in the country for routine SS to detect BCR::ABL1 KD mutations. TKI responders patients were selected from the Pathology Laboratory at Hospital Tunku Azizah from January 2019 to December 2020. The Pathology Laboratory commonly received samples and conducted the detection and quantification of BCR::ABL1 transcripts at the time of diagnosis or during follow-up for CML patients.

Sample size estimation

The sample size for the study was determined using the OpenEpi software [16]. Based on the prevalence of BCR::ABL1 mutations in previous studies (22.7% [17], 22.4% [18] and 32.5% [19] in CML patients with imatinib resistance in Malaysia, a prevalence of 22.4% was considered. Accordingly, considering confidence interval at 95% and marginal error of 5%, a minimum number of 80 samples was required for this study.

cDNA synthesis

The archived RNA was quantified and checked for quality using NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific). RNA was previously extracted using the QIAamp RNA Blood Mini kit (Qiagen). Then, total cellular RNA (1 µg/µl) was reverse transcribed to cDNA using SuperScript IV First Strand Synthesis System (Thermo Fisher Scientific).

Mutational analysis of BCR::ABL1 KD by Sanger sequencing

Sanger sequencing was performed upon double-step PCR amplification of the BCR::ABL1 KD. The first-round amplification was performed using a forward primer on exon 12/13 of the BCR gene and a reverse primer on exon 10 of the ABL1-R gene. A 0.5 µl of the first PCR product was used as a template in second amplification of PCR. The ABL1 KD was amplified using three partially overlapping fragments, using set of primer that covers exon 4 until exon 10 ABL1 gene [20].

Sanger sequencing was performed on ABI3730XL 96 capillary Genetic Analyzer using BigDye® Terminator v3.1 Cycle Sequencing kit. The obtained sequences were visualized and aligned with Genbank reference sequence NM_005157.5 using CLC Main Workbench, version 7.0.2 (Qiagen).

Mutational analysis of BCR::ABL1 KD by next-generation sequencing

Semi-nested PCR was performed to amplify the BCR::ABL1 allele and followed by another PCR for ABL1 KD amplification using appropriate primers [20]. A total of 400ng of each purified PCR product was used as input for tagmentation and library preparation using the Illumina DNA Prep kit as per manufacturer instructions. The library was normalized to 2 nM and pooled for sequencing on an Illumina MiSeq. The FASTQ files generated were then uploaded to Illumina BaseSpace Sequence Hub (BSSH). These files were analyzed using DRAGEN RNA (Illumina Inc.) and produced an output VCard File (VCF) file for downstream analysis. The details of methodology for NGS are provided in the supplemental Methods.


This study includes 84 CML patients who either do not respond or have lost their response to TKI therapy, as well as 18 CML patients who have achieved stable optimal responses to TKI therapy. The characteristics of patients are listed in Table 1.

Table 1 Characteristics of patients

Detection of BCR::ABL1 KD mutation

In total, 12 different BCR::ABL1 KD mutations were identified in 22.6% (19/84) of patients who were resistant to TKI treatment by SS (Fig. 1). NGS resulted in the detection of 16 different missense mutations in 27.4% (23/84) of TKI resistant patients (Fig. 2). Among the TKI-resistant patients, 14 carried one mutation, while 9 carried more than one mutation. NGS identified all true high-frequency mutations (> 15% frequency) found by SS and additional four low-frequency mutations (3 to 15% frequency). The additional mutations identified by NGS are M244V, A344V, E355A, and E459K (Table S1). No mutation was detected in patients with optimal response to TKI therapy by SS and NGS method.

Fig. 1
figure 1

Sequencing chromatogram of variants detected in TKI resistant patients by Sanger sequencing. The ID number each of patient is provided at the beginning of each panel

Fig. 2
figure 2

Distribution of variants detected by NGS and SS in TKI-resistant patients

Variant classification

Variants p.M244V, p.G250E, p.Y253H, p.E255K, p.T315I, p.F317L, p.E355G, p.F359C, and p.F359V have been classified as pathogenic/likely pathogenic by ClinVar. These mutations have a phenotypic association with CML and lymphoblastic leukemia. Notably, variant p.F317L identified in this study has two different nucleotide changes, c.949T > C and c.951 C > A. The variant p.F317L with nucleotide change c.951 C > A was classified as likely pathogenic while variant c.949T > C p.F317L was classified as VUS by ClinVar. Notably, six mutations (p.L387M, p.E453K, p.E459K, p.A344V, p.E355A, and p.K357T) identified in this study were not documented in ClinVar.

In addition, Table 2 presents a list of mutations identified in current research and their corresponding sensitivity levels to the approved TKIs based on the previous study [12, 21,22,23,24,25,26,27,28,29,30,31,32,33]. The degree of sensitivity of mutations p.A344V, p.E355A, p.K357T, and p.E453K to TKI treatment has not been well established in clinical studies. Therefore, resistance profiles of these mutations were predicted using the web-based tool, SUSPECT-ABL ( [34]. Upon testing, all mutations were determined to be susceptible to imatinib, exhibiting change in protein stability, ddG (Delta Delta G) values of 0.19 for p.A344V, 0.28 for p.E355A, 0.19 for p.K357T and 0.37 for p.E453K. Figure 3 shows the locations of mutations and imatinib in ABL kinase domain.

Table 2 List of BCR::ABL1 KD mutations identified in the present study that associated with TKIs resistance
Fig. 3
figure 3

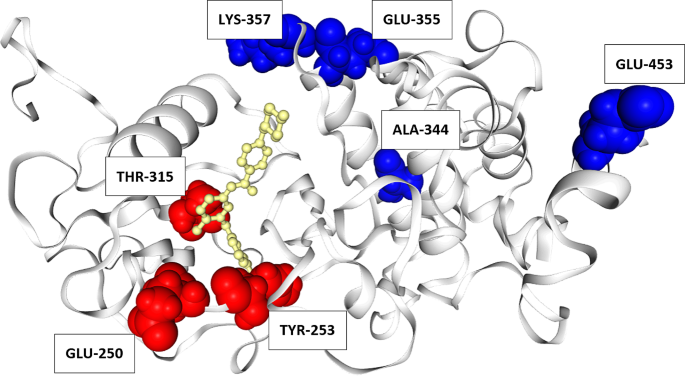

Location of missense mutations mapped onto the protein structure of ABL kinase domain. Blue indicates location of mutations A344V, E355A, K357T, and E453K; red indicates location of clinically resistant mutations; yellow indicates location of imatinib


In this study, we described the development of laboratory assays using PCR and NGS-based approaches for BCR::ABL1 KD mutation detection. The NGS amplicon sequencing involves generating libraries from PCR products, pooled and subsequently sequenced on the Illumina MiSeq platform.

NGS assay identified 16 different BCR::ABL1 KD mutations in 27.4% (23/84) TKI-resistant patients. The variants detected at a frequency of 20% and above within BCR::ABL1 transcripts were categorized as ‘high-level’. In contrast, variants detected at a frequency less than 20% but greater than or equal to 3% of BCR::ABL1 transcripts were classified as ‘low-level’ [35]. In this study, Sanger sequencing was able to detect mutations with variant read frequency of more than 15%, therefore, identified 12 different mutations in 22.6% (19/84) TKI-resistant patients.

The current investigation shows the frequency of mutations by NGS detection in TKI-resistant patients is lower than in other studies, as reported 80% by Soverini et al. in 2016 [35], 33% by Duong et al. in 2017 [36], 59% by Erbilgin et al. in 2019 [37] and 30.9% by Liu et al. in 2020 [38]. According to a previous study by Kim et al. (2009), the proportion of patients in each phase of CML disease could affect the rate of mutations. The study found that a significant number of patients (63%) had BCR::ABL1 KD mutations, which could be attributed to the high number of patients in the advanced phase (35% in the accelerated phase and 40% in the blast phase) [39]. Therefore, the large portion of patients in the chronic phase included in this study (66.7%) could explain the lower mutation rate compared with other studies. The research conducted on identifying BCR::ABL1 KD mutation in Malaysian patients who are resistant to IM treatment was recorded at 22.4% [18], 22.7% [17], and 32.5% [19], which were consistent with our study. These previous studies have employed dHPLC followed by direct DNA sequencing as a mutation detection method.

The most common mutations type found in TKI-resistant patients by NGS detection were p.Y253H, p.T315I, p.E255K, and p.F359V. The occurrence of the mutations in the present study was reported as follows: p.Y253H in 8.3%, p.T315I in 7.1%, p.E255K in 4.8%, and p.F359V in 4.8%. The previous study conducted on the detection of BCR::ABL1 KD mutations by NGS reported that p.Y253H mutation occurs in 8.2–14.4%, p.T315I in 4.1–23%, p.E255K in 4.1–10% and p.F359V in 5.6–6.6% which was comparable to the results obtained in the current study [35, 36, 38]. Among TKI-resistant patients in the present study, 9 individuals were found to have multiple mutations. Multiple mutations may reflect either polyclonal or compound mutations [40]. Previous studies have reported that multiple mutations were associated with worse outcomes and poor molecular response [29, 40, 41].

The majority of mutations identified in this study are situated distally from the imatinib-binding site (Fig. 3), making it challenging to explain their resistance mechanism. A new machine learning-based tool called SUSPECT-ABL is utilized to assess mutations with unknown effects on TKIs. These mutations were predicted to be susceptible to imatinib, which aligns with their location further away from the drug-binding site (Fig. 3). In contrast, clinically resistant mutations tend to cluster around imatinib (Fig. 3). Despite showing superior performance compared to other machine learning and molecular dynamics-based prediction [34], accuracy of SUSPECT-ABL is primarily high for residues in close proximity to imatinib. This highlights the limitations of current in silico tools and underscores the need to employ a better predictor for drug efficacy beyond measuring drug affinity alone.

In summary, the result of this study demonstrates that NGS is more sensitive than Sanger sequencing method for detecting BCR::ABL1 KD mutations in CML patients, thus emphasizing the crucial role of NGS assays in advancing the understanding of mutation-associated TKI resistance in CML. The flexibility and capacity to assess multiple targets in a single run render NGS a valuable tool, considering its potential to revolutionize the detection and characterization of mutations in CML. Moreover, these findings indicate that integrating NGS into clinical practice has the potential to significantly impact therapeutic decision-making, ultimately leading to improved patient outcomes in the management of CML.


The current study could not prove that NGS able to detect emerging BCR::ABL1 KD mutations earlier than Sanger sequencing. The present study also was not able to distinguish between polyclonal and compound mutations in BCR::ABL1 KD since the long-range (LR)-NGS and fragment subcloning was not performed due to limited budget. The samples included in this study were selected from only a single center and thus the findings may not be representative of the general population of TKI resistant CML patients in Malaysia. Due to financial and time constraint, only 84 samples were able to recruit in the current study.

Data availability

The data are not publicly available due to ethical restrictions by the Medical Research Ethics Committee (MREC) Ministry of Health Malaysia (NMRR-19-3693-52311). A Table S1 has been attached. The remaining data are available from the corresponding author upon reasonable request, subject to the permission of Medical Research & Ethics Committee Ministry of Health Malaysia.



base pairs


complementary DNA


Chronic myeloid leukemia


Delta Delta G


Deoxyribonucleic acid


European LeukemiaNet


imatinib mesylate


International Scale


Kinase domain


National Comprehensive Cancer Network


Next generation sequencing


Polymerase chain reaction


Ribonucleic acid


Sanger sequencing


Tyrosine kinase inhibitor
